TCST Series

tcstTelecentric lenses are good for the measurement without magnification change through over the D.O.F. and also good for even illumination (telecentric lighting) via coaxial illumination.
We have several types of telecentric lenses like different working distance, magnification, CCD size & high resolution or standard resolution as follows.

  • Fixed magnification lens
  • Low optical distortion & good telecentricity
  • High resolution and high contrast design
  • Various W.D. & magnification
  • Even coaxial illumination types
Filter products
Sort by
    ProductMAGWDReso.NAF No.DOF.Telec.Dist.Mount
    Lensagon TCST-12-110-S13 111010.160.0331810000.030.03C-Mount
    Lensagon TCST-12-110C-S13 111010.160.0331810000.030.03C-Mount
    Lensagon TCST-05-65 0.56512.40.02718.514800.020.03C-Mount
    Lensagon TCST-05-65C 0.56512.40.02718.514800.020.03C-Mount
    Lensagon TCST-05-40 0.54311.20.038.326000.030.02C-Mount
    Lensagon TCST-05-40C 0.54311.20.038.326000.030.02C-Mount
    Lensagon TCST-10-40 1406.20.0549.267400.030.08C-Mount
    Lensagon TCST-10-40C 1406.20.0549.267400.030.08C-Mount
    Lensagon TCST-15-40 1.5405.320.06311.94230.030.05C-Mount
    Lensagon TCST-15-40C 1.5405.320.06311.94230.030.05C-Mount
    Lensagon TCST-20-40 2404.80.0714.282860.030.03C-Mount
    Lensagon TCST-20-40C 2404.80.0714.282860.030.03C-Mount
    Lensagon TCST-30-40 3404.80.0721.51910.020.026C-Mount
    Lensagon TCST-30-40C 3404.80.0721.51910.020.026C-Mount
    Lensagon TCST-40-40 4404.80.728.61430.020.3C-Mount
    Lensagon TCST-40-40C 4404.80.0728.61430.020.02C-Mount
    Lensagon TCST-50-40 5404.20.0831.251000.020.05C-Mount
    Lensagon TCST-50-40C 5404.20.0831.251000.020.05C-Mount
    Lensagon TCST-60-40 6404.20.0837.4830.020.02C-Mount
    Lensagon TCST-60-40C 6404.20.0837.4830.020.02C-Mount
    Lensagon TCST-80-40 8404.20.0850630.020.02C-Mount
    Lensagon TCST-80-40C 8404.20.0850630.020.02C-Mount
    Lensagon TCST-08-65 0.86512.40.02714.818500.020.03C-Mount
    Lensagon TCST-08-65C 0.86512.40.02714.81.850.020.03C-Mount
    Lensagon TCST-10-65 16512.40.02718.514800.020.03C-Mount
    Lensagon TCST-10-65C 16512.40.02718.514800.020.03C-Mount
    Lensagon TCST-15-65 1.56570.04815.65540.060.05C-Mount
    Lensagon TCST-15-65C 1.56570.04815.65540.060.05C-Mount
    Lensagon TCST-20-65 2655.20.06515.43080.020.03C-Mount
    Lensagon TCST-20-65C 2655.20.06515.43080.020.03C-Mount
    Lensagon TCST-30-65 3654.80.0721.41910.020.016C-Mount
    Lensagon TCST-30-65C 3654.80.0721.4190.020.016C-Mount
    Lensagon TCST-40-65 4654.40.07626.31320.040.03C-Mount
    Lensagon TCST-40-65C 4654.40.07626.31320.040.03C-Mount
    Lensagon TCST-50-65 5654.40.07632.91090.040.05C-Mount
    Lensagon TCST-50-65C 5654.40.07632.91090.040.05C-Mount
    Lensagon TCST-60-65 665.34.40.07639.5880.040.06C-Mount
    Lensagon TCST-60-65C 6654.40.07639.5880.040.06C-Mount
    Lensagon TCST-80-65 864.94.40.07652.6660.050.05C-Mount
    Lensagon TCST-80-65C 864.94.40.07652.6660.050.05C-Mount
    Lensagon TCST-05-110 0.511020.210.0166154.80.030.041C-Mount
    Lensagon TCST-05-110C 0.511020.210.01661548000.030.04C-Mount
    Lensagon TCST-08-110 0.811012.40.02714.818500.050.05C-Mount
    Lensagon TCST-08-110C 0.811012.40.02714.818500.050.05C-Mount
    Lensagon TCST-10-113 1113140.02420.816600.023C-Mount
    Lensagon TCST-10-113C 1113140.02420.816600.050.05C-Mount
    Lensagon TCST-20-110 21107.50.04522.24440.020.02C-Mount
    Lensagon TCST-20-110C 21107.50.04522.24440.020.02C-Mount
    Lensagon TCST-24-110 2.41077.50.04526.73700.020.07C-Mount

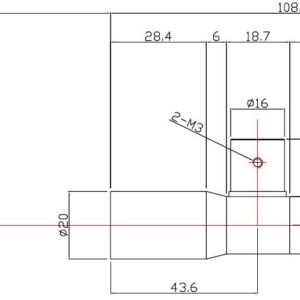

    Lensagon TCST-24-110C 2.41107.50.04522.24440.020.02C-Mount
    Lensagon TCST-30-110 31106.10.05527.32430.010.14C-Mount
    Lensagon TCST-30-110C 31106.10.05527.32430.010.14C-Mount
    Lensagon TCST-40-110 41105.60.0633.451670.010.16C-Mount
    Lensagon TCST-40-110C 41105.60.0633.451670.010.16C-Mount
    Lensagon TCST-50-110 51105.60.0641.71330.010.14C-Mount
    Lensagon TCST-50-110C 51105.60.0641.71330.010.14C-Mount
    Lensagon TCST-60-110 61105.60.06501110.010.1C-Mount
    Lensagon TCST-60-110C 61105.60.06501110.010.1C-Mount
    Lensagon TCST-80-110 81105.60.0666.7850.0150.25C-Mount
    Lensagon TCST-80-110C 81105.60.0666.7850.0150.25C-Mount

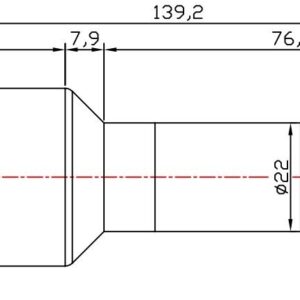

    Lensagon TCST-075-220 0.752209.060.037101.40.030.02C-Mount
    Lensagon TCST-075-220C 0.752209.060.037101.40.030.02C-Mount
    Lensagon TCST-10-220 12207.40.045118800.030.01C-Mount
    Lensagon TCST-10-220C 12207.40.045118800.030.01C-Mount
    Lensagon TCST-10-250-S118 12507.450.045114840.030.081C-Mount
    Lensagon TCST-10-250-S118C 12507.450.045114840.030.081C-Mount

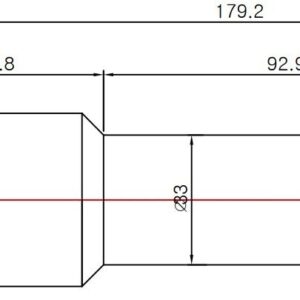

    Lensagon TCST-15-200 1.520050.06711.23980.030.08C-Mount
    Lensagon TCST-15-200C 1.520050.06711.23980.030.08C-Mount
    Lensagon TCST-15-220-S12 1.52207.450.04516.65900.030.13C-Mount
    Lensagon TCST-15-220-S12C 1.52207.450.04516.65900.030.13C-Mount
    Lensagon TCST-20-200 22004.20.0912.52500.030.02C-Mount
    Lensagon TCST-20-200C 22004.20.0812.52500.030.02C-Mount
    Lensagon TCST-30-200 32004.20.0818.71660.020.1C-Mount
    Lensagon TCST-30-200C 32004.20.0818.71660.020.1C-Mount
    Lensagon TCST-40-200 42004.190.08251250.0150.13C-Mount
    Lensagon TCST-40-200C 42004.190.08251250.13C-Mount
    Lensagon TCST-10-300 13009.60.03514.21.10.020.03C-Mount
    Lensagon TCST-10-300C 13009.60.03514.21.10.020.03C-Mount
    Lensagon TCST-15-300 1.53009.60.03521.47610.020.13C-Mount
    Lensagon TCST-15-300C 1.53009.60.03521.47610.020.13C-Mount
    Lensagon TCST-20-300 23009.60.03528.55700.010.17C-Mount
    Lensagon TCST-20-300C 23009.60.03528.55700.010.17C-Mount
    Lensagon TCST-05-400 0.540212.90.0269.631000.030.05C-Mount
    Lensagon TCST-05-400C 0.540212.90.0269.631000.030.05C-Mount
    Lensagon TCST-08-173 0.817311.20.0313.316600.040.07C-Mount
    Lensagon TCST-08-173C 0.817311.20.0313.316600.040.07C-Mount
    Lensagon TCST-10-156 11568.80.03813.210000.040.07C-Mount
    Lensagon TCST-10-156C 11568.80.03813.210000.040.07C-Mount
    Lensagon TCST-12-173 1.217311.20.032011000.040.13C-Mount
    Lensagon TCST-12-173C 1.217311.20.032011000.040.13C-Mount
    Lensagon TCST-15-156 1.51568.80.03819.77000.040.16C-Mount
    Lensagon TCST-15-156C 1.51568.830.03819.77000.040.16C-Mount
    Lensagon TCST-16-173 1.617311.20.0326.78340.040.18C-Mount
    Lensagon TCST-16-173C 1.617311.20.0326.78340.040.18C-Mount
    Lensagon TCST-20-156 21568.80.03826.35260.040.19C-Mount
    Lensagon TCST-20-156C 21568.80.03826.35260.040.19C-Mount
