Lensagon TCST-80-40C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 8x, WD 40mm, F# 50, NA 0.08, DOF 63um, Opt.Dist. 0.02, Coaxial Version

 Compare
SKU: 10510 Category:

Product Description

The Object Side Telecentric Lens TCST-80-40C is suitable for sensors with an image format of 1/2 inch.

Magnification 8.00 x
Working Distance (WD) 40.00 mm
Depth of Field (DOF) 63.00 μm @ 40.00 μm
Resolution (Object Side) 4.20 μm
Image Format (max.) 1/2 inch
Working F-Number 50.00
Numerical Aperture (NA) 0.08
Field of View (FOV) 0.8mm x 0.6mm @ 1/2″
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.02 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

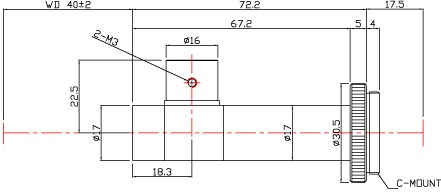

Drawing
