Lensagon TCST-60-110C

Lensagon TCST-60-110C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 6x, WD 110mm, F# 50, NA 0.06, DOF 111um, Opt.Dist. 0.1, Coaxial Version

 Compare
SKU: 10594 Category:

Product Description

The Object Side Telecentric Lens TCST-60-110C is suitable for sensors with an image format of 1/2 inch.

Magnification6 x
Working Distance (WD)110 mm
Depth of Field (DOF)111 μm
Resolution (Object Side)5.6 μm
Image Format (max.)1/2 inch
Working F-Number50
Numerical Aperture (NA)0.06
Field of View (FOV)1.07mm x 0.8mm @ 1/2
Telecentric TypeObject Side
Telecentricity0.01 °
Optical Distortion (max.)0.1 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

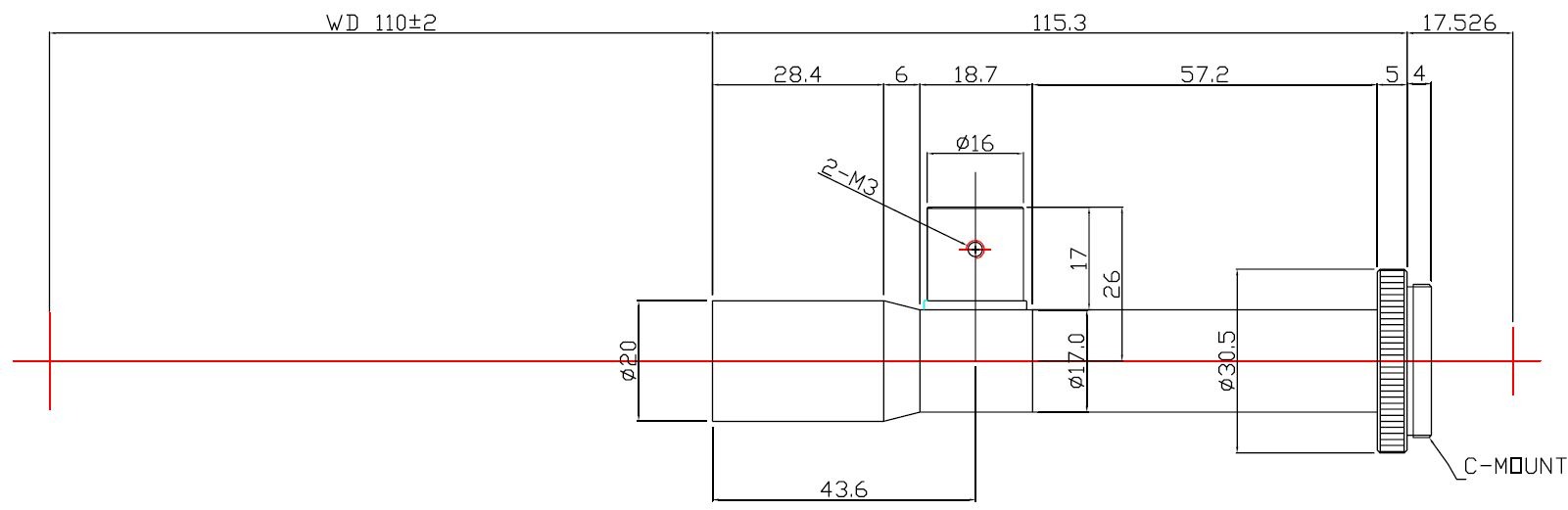

Drawing
