Lensagon TCST-20-156

Lensagon TCST-20-156

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 2x, WD 156mm, F# 26.3, NA 0.038, DOF 526um, Opt.Dist. 0.19

 Compare
SKU: 10149 Category:

Product Description

The Object Side Telecentric Lens TCST-20-156 is suitable for sensors with an image format of 1/2 inch.

Magnification2 x
Working Distance (WD)156 mm
Depth of Field (DOF)526 μm
Resolution (Object Side)8.8 μm
Image Format (max.)1/2 inch
Working F-Number26.3
Numerical Aperture (NA)0.038
Field of View (FOV)3.2mm x 2.4mm @ 1/2″
Telecentric TypeObject Side
Telecentricity0.04 °
Optical Distortion (max.)0.19 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

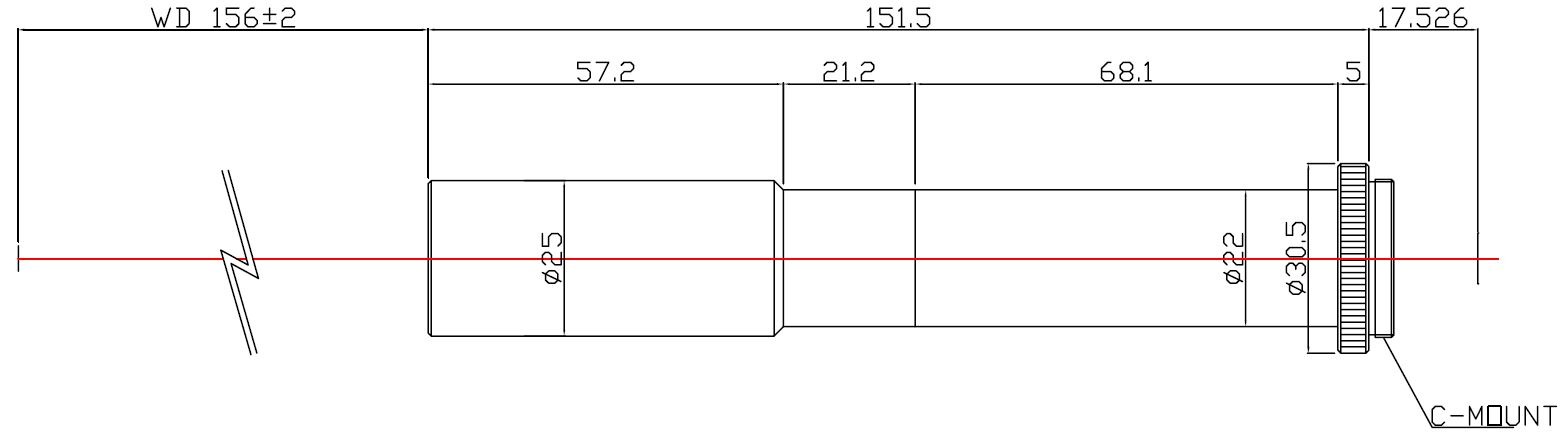

Drawing
