Lensagon TCST-15-65C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1.5x, WD 65mm, F# 15.6, NA 0.048, DOF 554um, Opt.Dist. 0.05, Coaxial Version

 Compare
SKU: 10549 Category:

Product Description

The Object Side Telecentric Lens TCST-15-65C is suitable for sensors with an image format of 1/2 inch.

Magnification 1.5
Mount C-Mount
Aperture 15.6
Working Distance (WD) 65 mm
Depth of Field (DOF) 554 μm
Resolution (Object Side) 7 μm
Numerical Aperture (NA) 0.048
Image Format (max.) 1/2 inch
Field of View (FOV) 4.27mm x 3.2mm@1/2″ CCD
Lens Type Object Side
Telecentricity 0.06
Optical Distortion (max.) 0.05 %
Special Feature Standard
pdf

Additional Information

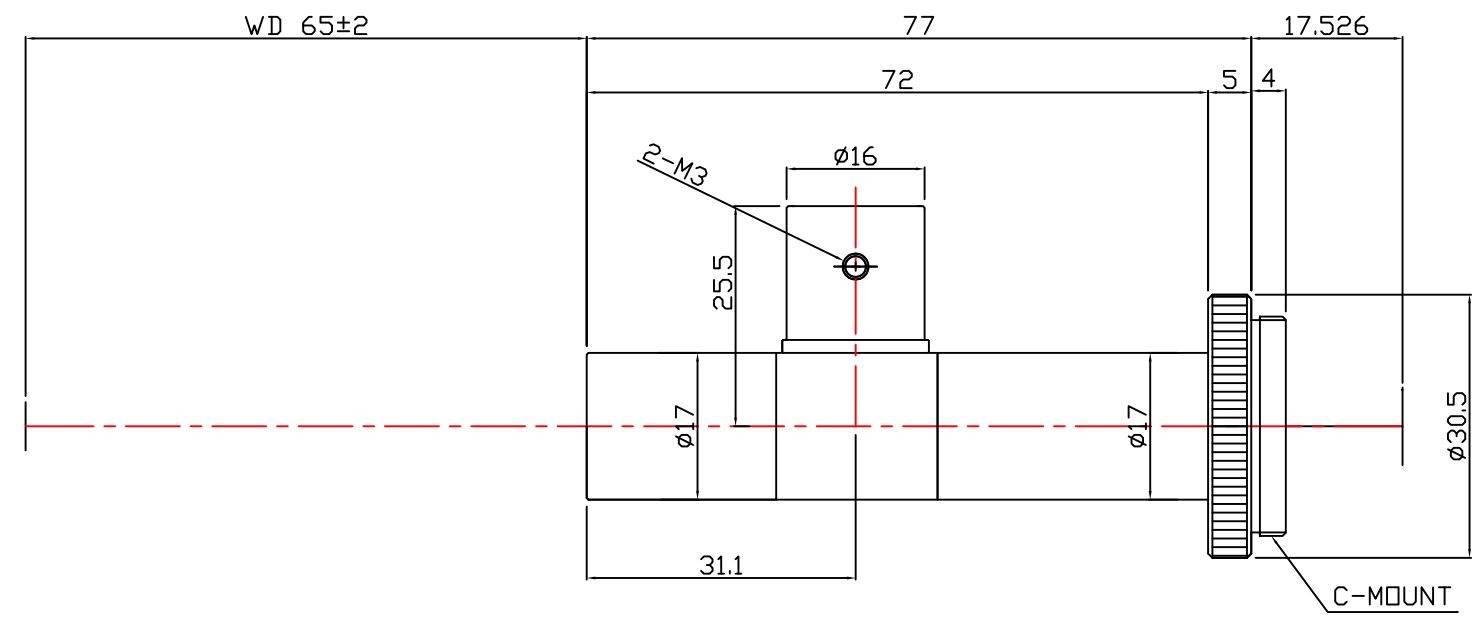

Technical Drawing:

Drawing
