Lensagon TCST-075-220

Lensagon TCST-075-220

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.75x, WD 220mm, F# 10, NA 0.037, DOF 1400um, Opt.Dist. 0.02

 Compare
SKU: 01039 Category:

Product Description

The Object Side Telecentric Lens TCST-075-220 is suitable for sensors with an image format of 1/2 inch.

Magnification0.75 x
Working Distance (WD)220 mm
Depth of Field (DOF)1.4 mm
Resolution (Object Side)9.06 μm
Image Format (max.)1/2 inch
Working F-Number10
Numerical Aperture (NA)0.037
Field of View (FOV)11.7mm x 8.8mm @ 2/3″
Telecentric TypeObject Side
Telecentricity0.03 °
Optical Distortion (max.)0.02 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

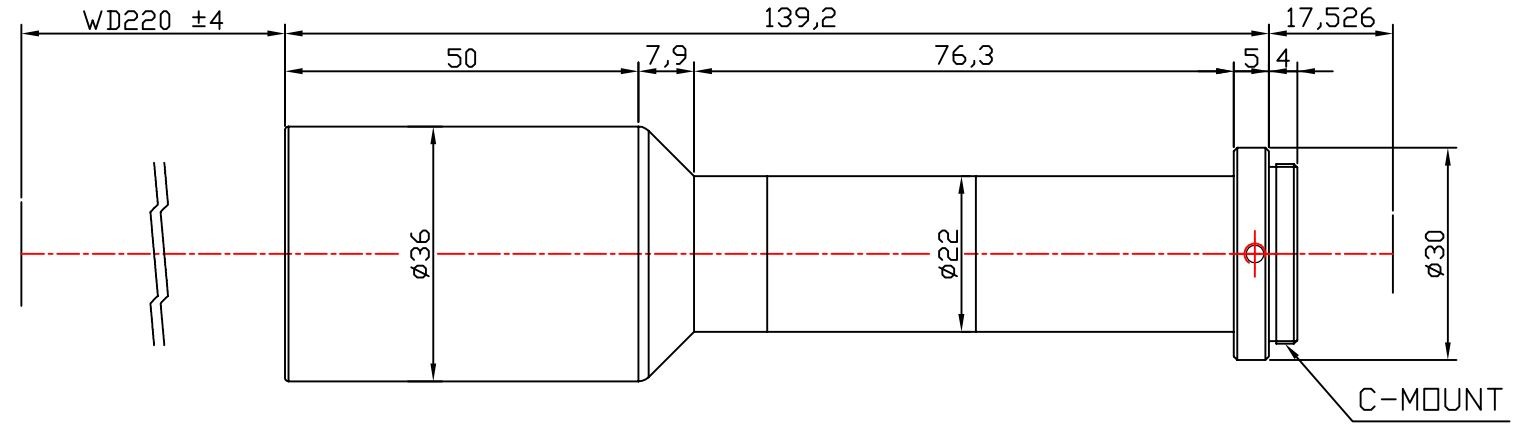

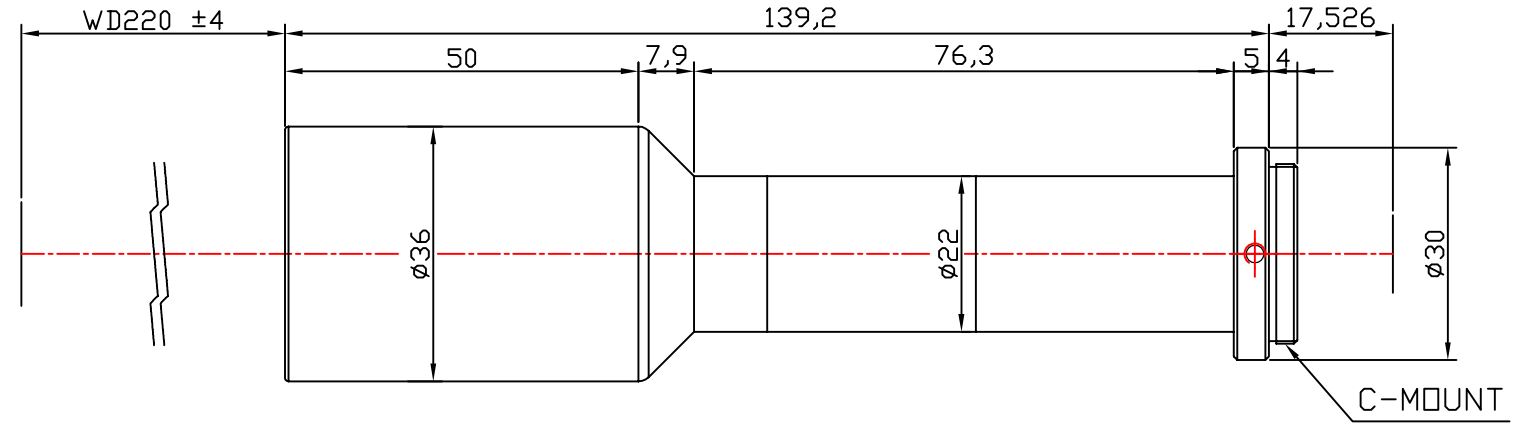

Drawing
