Lensagon TCST-15-65

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1.5x, WD 65mm, F# 15.6, NA 0.048, DOF 554um, Opt.Dist. 0.05

 Compare
SKU: 10309 Category:

Product Description

The Object Side Telecentric Lens TCST-15-65 is suitable for sensors with an image format of 1/2 inch.

Magnification 1.5 x
Working Distance (WD) 65 mm
Depth of Field (DOF) 554 μm @ 40 μm
Resolution (Object Side) 7 μm
Image Format (max.) 1/2 inch
Working F-Number 15.6
Numerical Aperture (NA) 0.048
Field of View (FOV) 4.27mm x 3.2mm @ 1/2″
Telecentric Type Object Side
Telecentricity 0.06 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

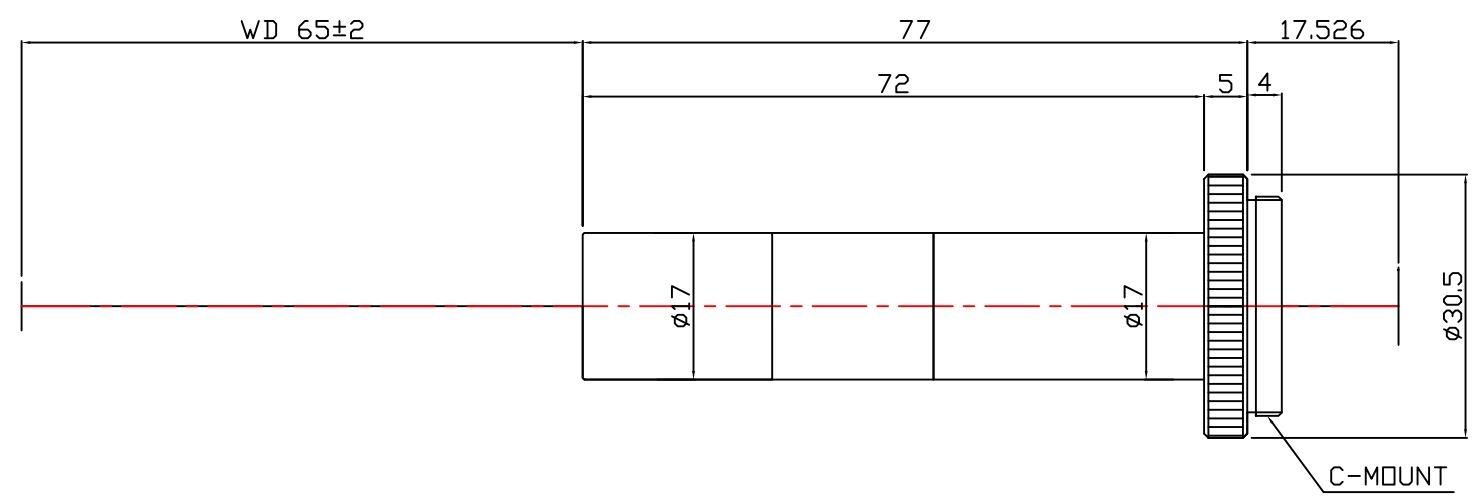

Drawing
