Lensagon TCST-30-40C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 3x, WD 40mm, F# 21.5, NA 0.07, DOF 191um, Opt.Dist. 0.026, Coaxial Version

 Compare
SKU: 10546 Category:

Product Description

The Object Side Telecentric Lens TCST-30-40C is suitable for sensors with an image format of 1/2 inch.

Magnification 3
Mount C-Mount
Aperture 21.5
Working Distance (WD) 40 mm
Depth of Field (DOF) 191 μm
Resolution (Object Side) 4.8 μm
Numerical Aperture (NA) 0.07
Image Format (max.) 1/2 inch
Field of View (FOV) 2.1mm x 1.6mm@1/2″ CCD
Lens Type Object Side
Telecentricity 0.02
Optical Distortion (max.) 0.026 %
Special Feature Standard
pdf

Additional Information

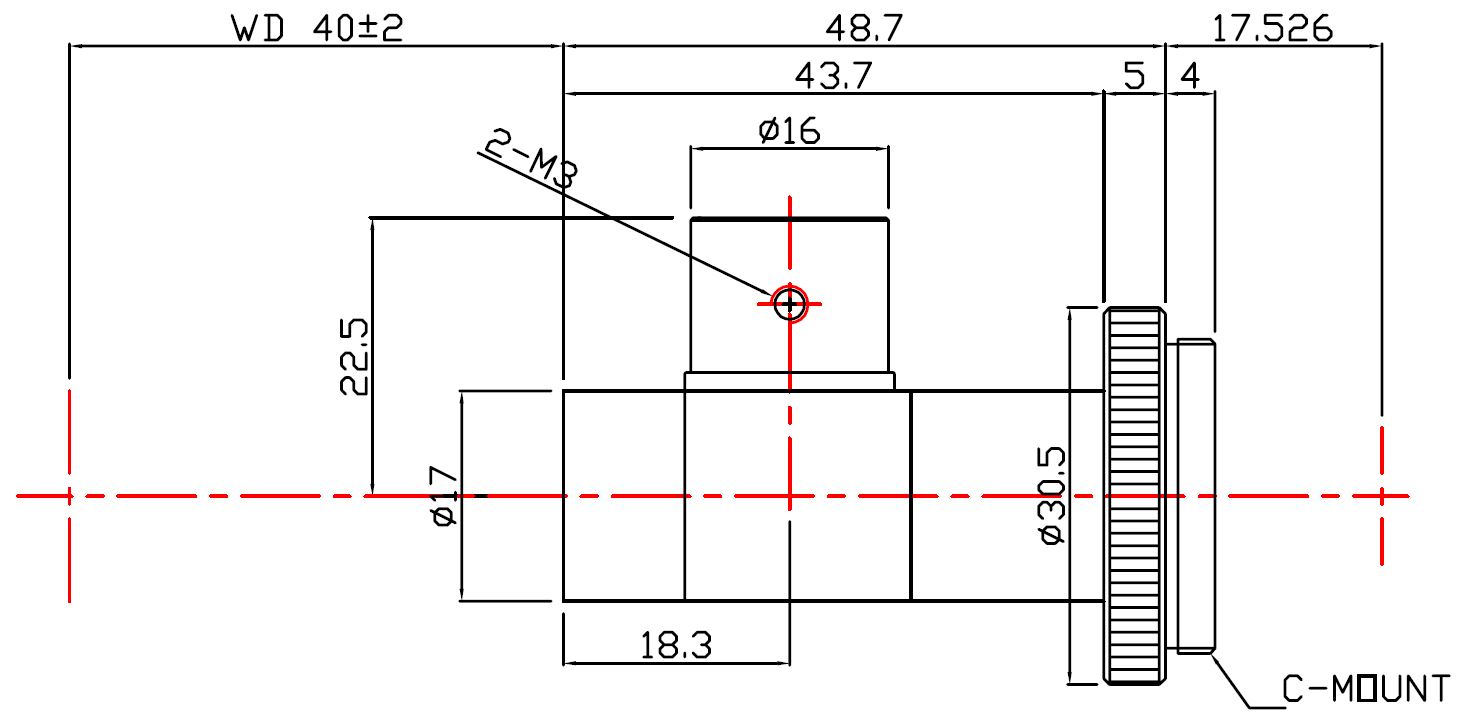

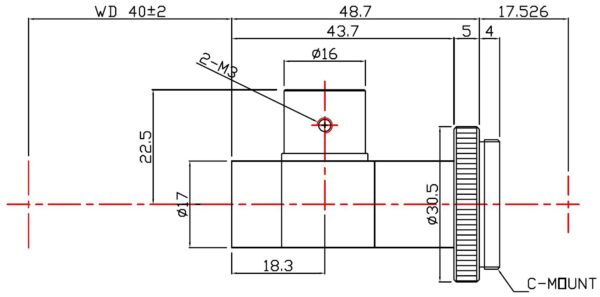

Technical Drawing:

Drawing
