Lensagon TCST-15-40C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1.5x, WD 40mm, F# 11.9, NA 0.063, DOF 423um, Opt.Dist. 0.05, Coaxial Version

 Compare
SKU: 10544 Category:

Product Description

The Object Side Telecentric Lens TCST-15-40C is suitable for sensors with an image format of 1/2 inch.

Magnification 1.5 x
Mount C-Mount
Working F-Number 11.9
Working Distance (WD) 40 mm
Depth of Field (DOF) 423 μm
Resolution (Object Side) 5.32 μm
Numerical Aperture (NA) 0.063
Image Format (max.) 1/2 inch
Field of View (FOV) 4.26mm x 3.26mm@1/2″ CCD
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.05 %
Special Feature Standard
pdf

Additional Information

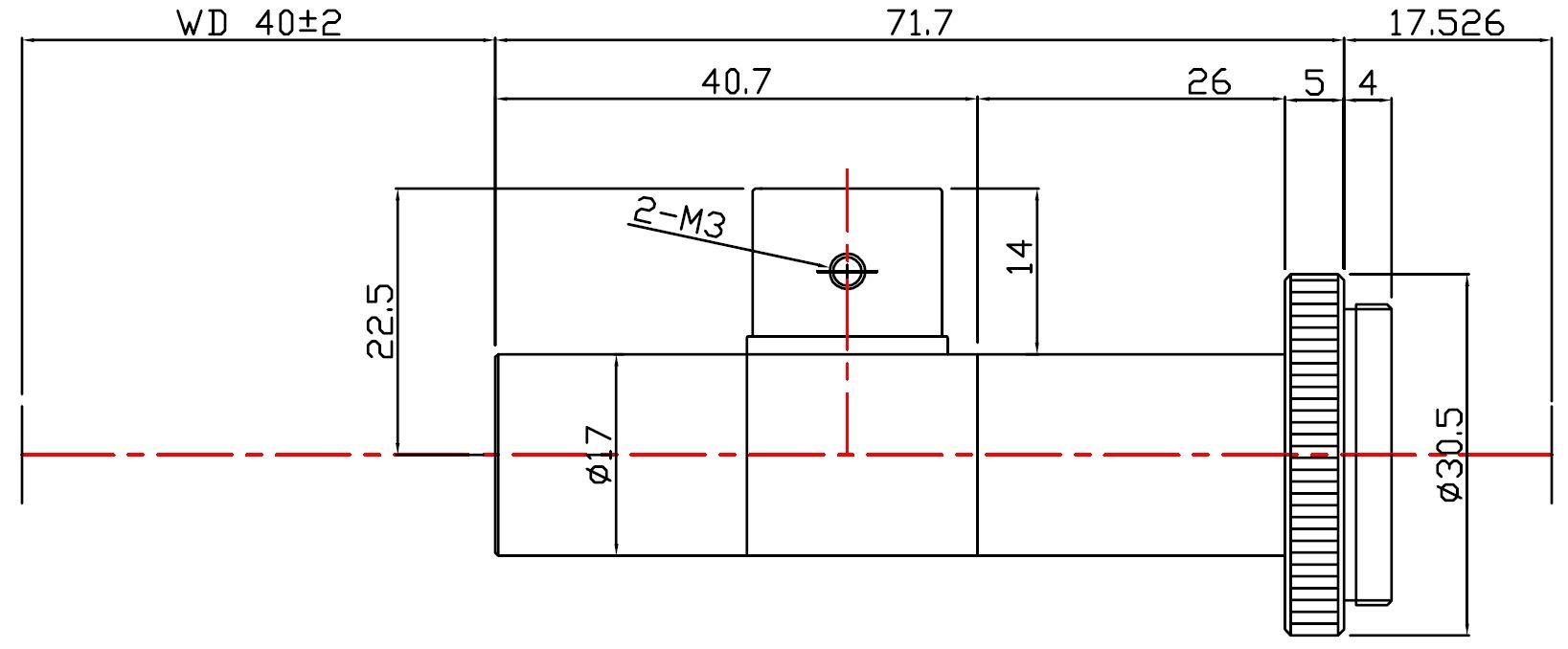

Technical Drawing:

Drawing
