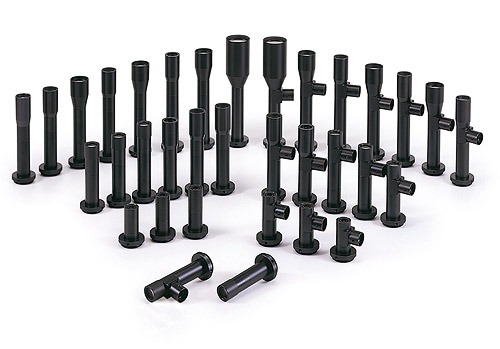

Lensagon TCST-40-40

Lensagon TCST-40-40

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 4x, WD 40mm, F# 28.6, NA 0.7, DOF 143um, Opt.Dist. 0.3

 Compare
SKU: 10283 Category:

Product Description

The Object Side Telecentric Lens TCST-40-40 is suitable for sensors with an image format of 1/2 inch.

Magnification 4 x
Mount C-Mount
Working F-Number 28.6
Working Distance (WD) 40 mm
Depth of Field (DOF) 143 μm
Resolution (Object Side) 4.8 μm
Numerical Aperture (NA) 0.7
Image Format (max.) 1/2 inch
Field of View (FOV) 1.6mm x 1.2mm@1/2
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.3 %
Special Feature Standard
pdf

Additional Information

Technical Drawing:

Drawing
