Lensagon TCST-50-110

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 5x, WD 110mm, F# 41.7, NA 0.06, DOF 133um, Opt.Dist. 0.14

 Compare
SKU: 10446 Category:

Product Description

The Object Side Telecentric Lens TCST-50-110 is suitable for sensors with an image format of 1/2 inch.

Magnification 5 x
Working Distance (WD) 110 mm
Depth of Field (DOF) 133 μm @ 40 μm
Resolution (Object Side) 5.6 μm
Image Format (max.) 1/2 inch
Working F-Number 41.7
Numerical Aperture (NA) 0.06
Field of View (FOV) 1.28mm x 0.96mm @ 1/2″
Telecentric Type Object Side
Telecentricity 0.01 °
Optical Distortion (max.) 0.14 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

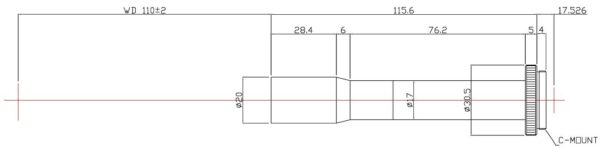

Drawing
