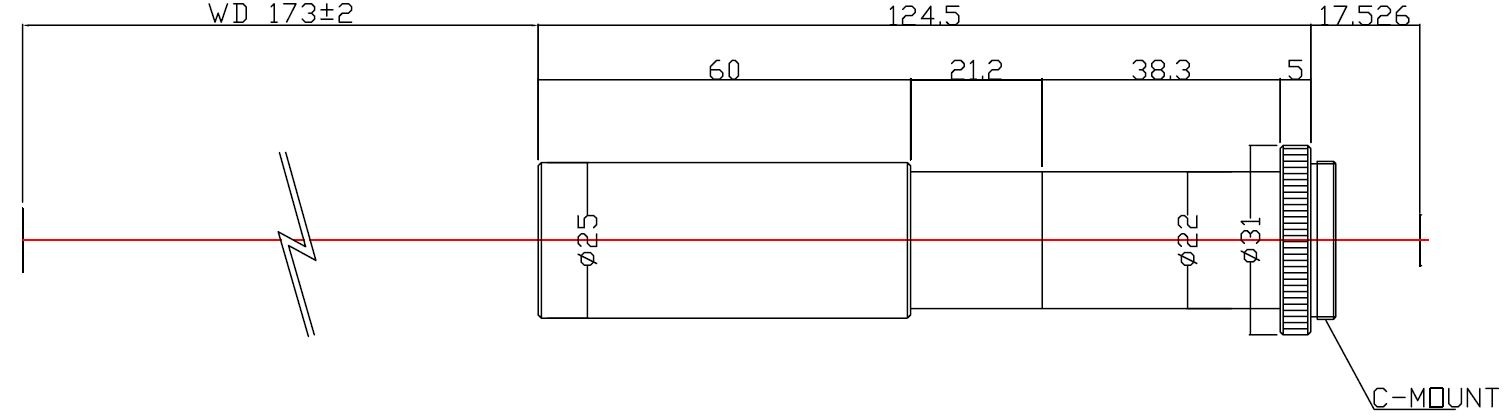

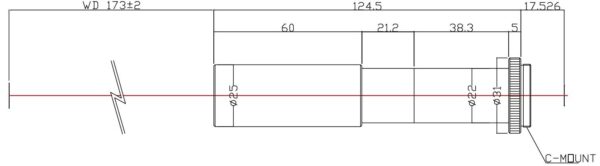

Lensagon TCST-08-173
Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.8x, WD 173mm, F# 13.3, NA 0.03, DOF 1660um, Opt.Dist. 0.07
Product Description
The Object Side Telecentric Lens TCST-08-173 is suitable for sensors with an image format of 1/2 inch.
| Magnification | 0.8 x |
|---|---|
| Mount | C-Mount * |
| Working F-Number | 13.3 |
| Working Distance (WD) | 173 mm |
| Depth of Field (DOF) | 1.66 mm |
| Resolution (Object Side) | 11.2 μm |
| Numerical Aperture (NA) | 0.03 |
| Image Format (max.) | 1/2 inch |
| Field of View (FOV) | 8mm x 6mm@1/2″ CCD |
| Telecentric Type | Object Side |
| Telecentricity | 0.04 ° |
| Optical Distortion (max.) | 0.07 % |
| Special Feature | Standard |
* Other mounts are available on request.
