Lensagon TCST-10-156C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1x, WD 156mm, F# 13.2, NA 0.038, DOF 1000um, Opt.Dist. 0.07, Coaxial Version

 Compare
SKU: 10009 Category:

Product Description

The Object Side Telecentric Lens TCST-10-156C is suitable for sensors with an image format of 1/2 inch.

Magnification 1 x
Working Distance (WD) 156 mm
Depth of Field (DOF) 1 mm @ 40 μm
Resolution (Object Side) 8.8 μm
Image Format (max.) 1/2 inch
Working F-Number 13.2
Numerical Aperture (NA) 0.038
Field of View (FOV) 6.4mm x 4.8mm @ 1/2″
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.07 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

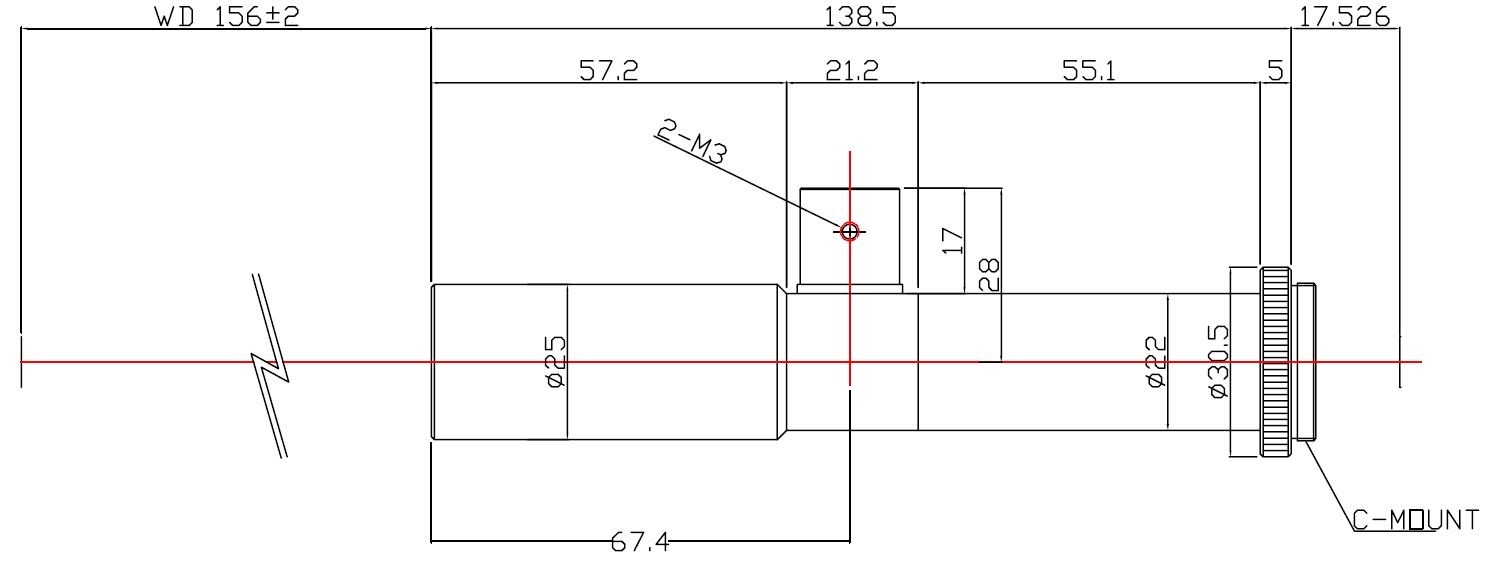

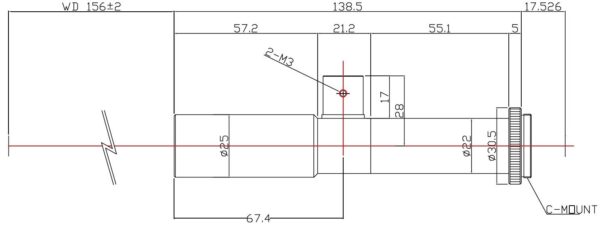

Drawing
