Lensagon TCST-20-300

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 2x, WD 300mm, F# 28.5, NA 0.035, DOF 570um, Opt.Dist. 0.17

 Compare
SKU: 01037 Category:

Product Description

The Object Side Telecentric Lens TCST-20-300 is suitable for sensors with an image format of 1/2 inch.

Magnification 2 x
Working Distance (WD) 300 mm
Depth of Field (DOF) 570 μm
Resolution (Object Side) 9.6 μm
Image Format (max.) 1/2 inch
Working F-Number 28.5
Numerical Aperture (NA) 0.035
Field of View (FOV) 3.2mm x 2.4mm @ 1/2″
Telecentric Type Object Side
Telecentricity 0.01 °
Optical Distortion (max.) 0.17 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

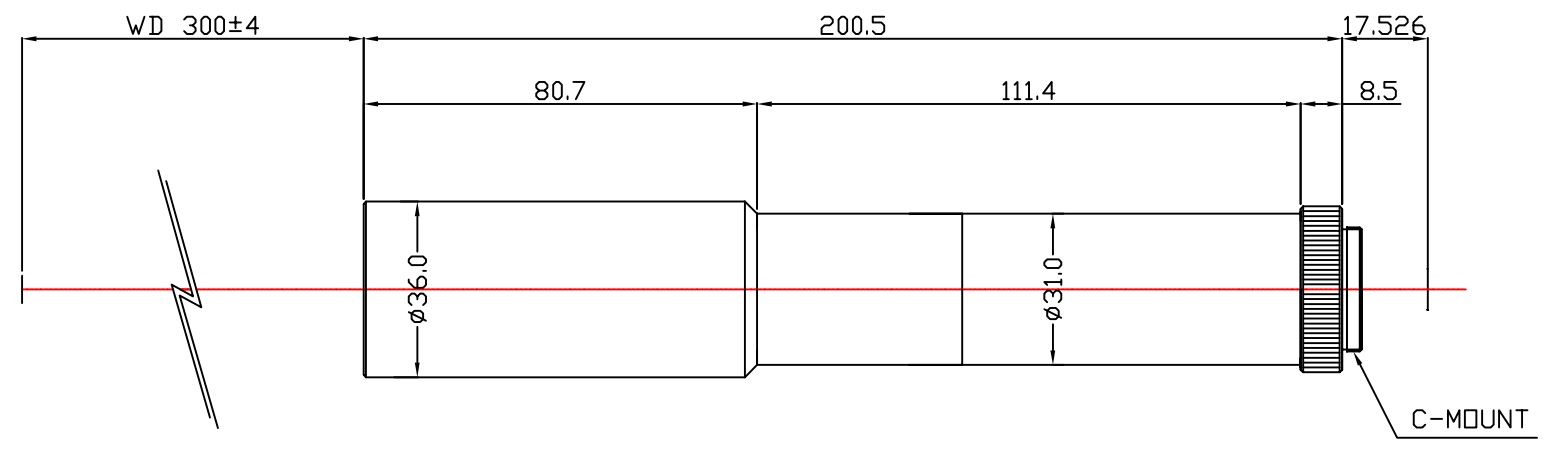

Drawing
