Lensagon TCST-30-65

Lensagon TCST-30-65

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 3x, WD 65mm, F# 21.4, NA 0.07, DOF 191um, Opt.Dist. 0.016

 Compare
SKU: 10570 Category:

Product Description

The Object Side Telecentric Lens TCST-30-65 is suitable for sensors with an image format of 1/2 inch.

Magnification3
MountC-Mount
Aperture21.4
Working Distance (WD)65 mm
Depth of Field (DOF)191 μm
Resolution (Object Side)4.8 μm
Numerical Aperture (NA)0.07
Image Format (max.)1/2 inch
Field of View (FOV)2.1mm x 1.6mm@1/2″ CCD
Lens TypeObject Side
Telecentricity0.02
Optical Distortion (max.)0.016 %
Special FeatureStandard
pdf

Additional Information

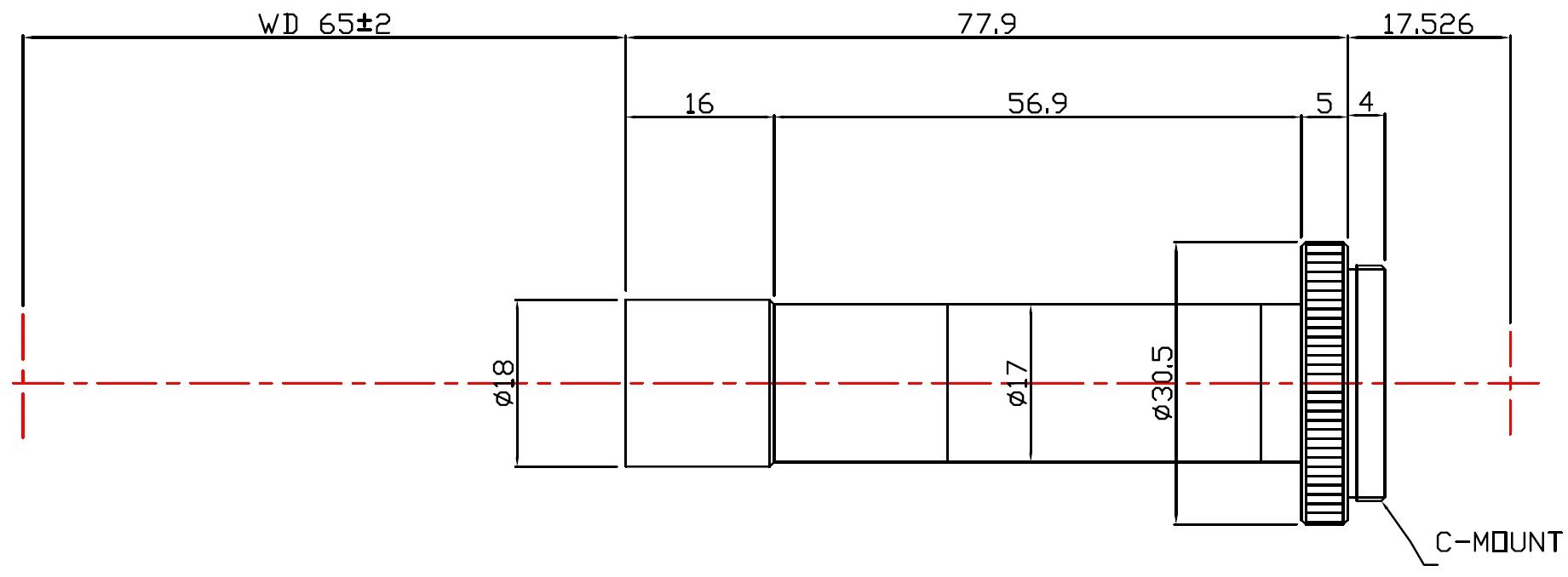

Technical Drawing:

Drawing
