Lensagon TCST-60-65C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 6x, WD 65mm, F# 39.5, NA 0.076, DOF 88um, Opt.Dist. 0.06, Coaxial Version

 Compare
SKU: 10247 Category:

Product Description

The Object Side Telecentric Lens TCST-60-65C is suitable for sensors with an image format of 1/2 inch.

Magnification 6 x
Mount C-Mount *
Working F-Number 39.5
Working Distance (WD) 65 mm
Depth of Field (DOF) 88 μm
Resolution (Object Side) 4.4 μm
Numerical Aperture (NA) 0.076
Image Format (max.) 1/2 inch
Field of View (FOV) 1.28mm x 0.96mm@1/2″ CCD
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.06 %
Special Feature Standard

* Other mounts are available on request.

pdf

Additional Information

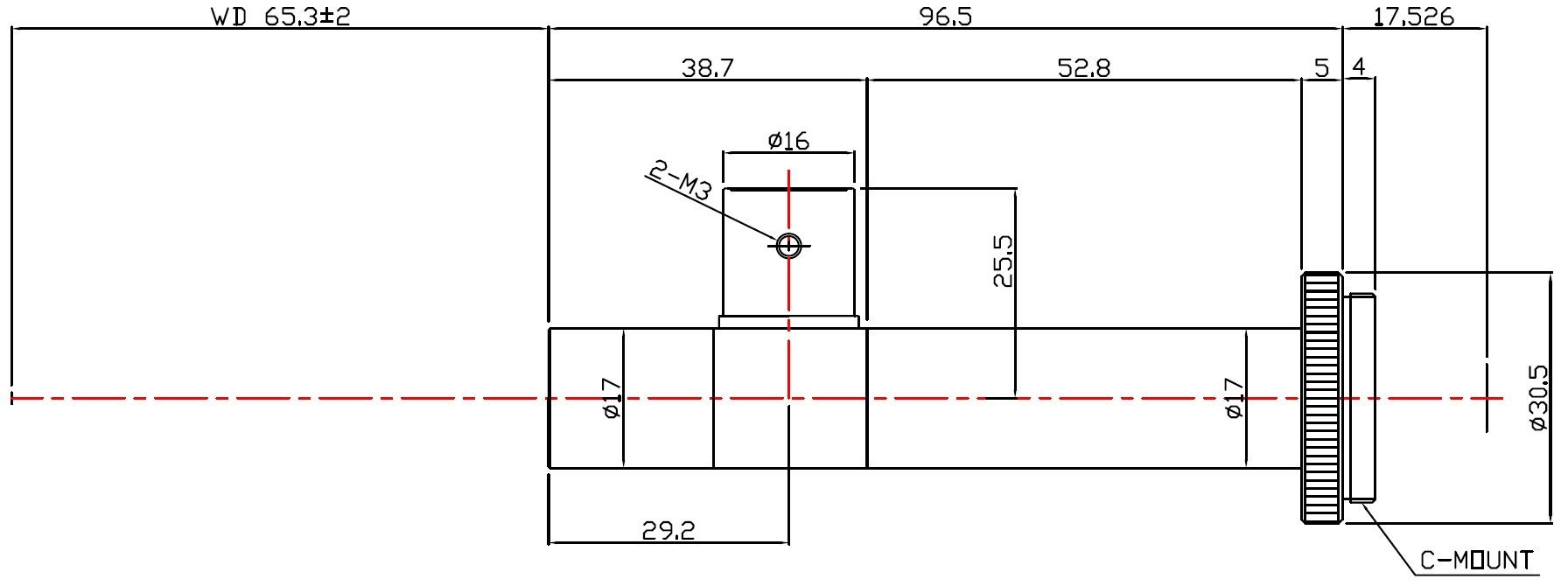

Drawing
