Lensagon TCST-60-65

Lensagon TCST-60-65

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 6x, WD 65.3mm, F# 39.5, NA 0.076, DOF 88um, Opt.Dist. 0.06

 Compare
SKU: 10586 Category:

Product Description

The Object Side Telecentric Lens TCST-60-65 is suitable for sensors with an image format of 1/2 inch.

Magnification6 x
Working Distance (WD)65.3 mm
Depth of Field (DOF)88 μm
Resolution (Object Side)4.4 μm
Image Format (max.)1/2 inch
Working F-Number39.5
Numerical Aperture (NA)0.076
Field of View (FOV)1.28mm x 0.96mm @ 1/2
Telecentric TypeObject Side
Telecentricity0.04 °
Optical Distortion (max.)0.06 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

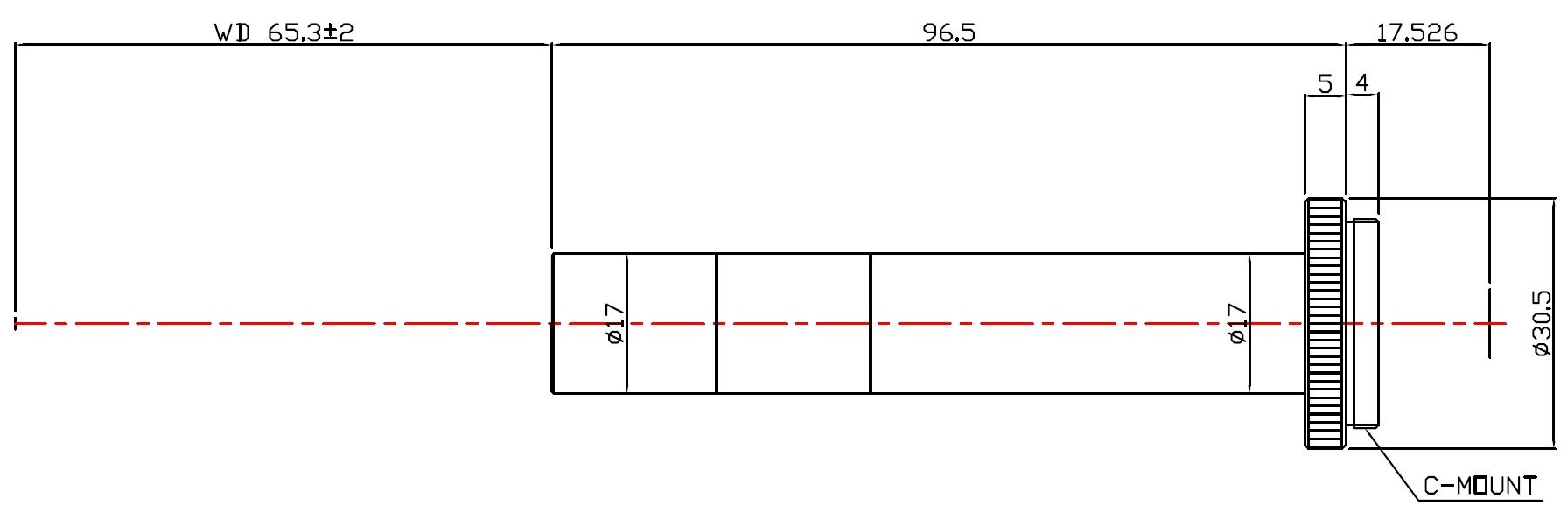

Drawing
