Lensagon TCST-80-65C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 8x, WD 64.9mm, F# 52.6, NA 0.076, DOF 66um, Opt.Dist. 0.05, Coaxial Version

 Compare
SKU: 10306 Category:

Product Description

The Object Side Telecentric Lens TCST-80-65C is suitable for sensors with an image format of 1/2 inch.

Magnification 8 x
Working Distance (WD) 64.9 mm
Depth of Field (DOF) 66 μm @ 40 μm
Resolution (Object Side) 4.4 μm
Image Format (max.) 1/2 inch
Working F-Number 52.6
Numerical Aperture (NA) 0.076
Field of View (FOV) 0.8mm x 0.6mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.05 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

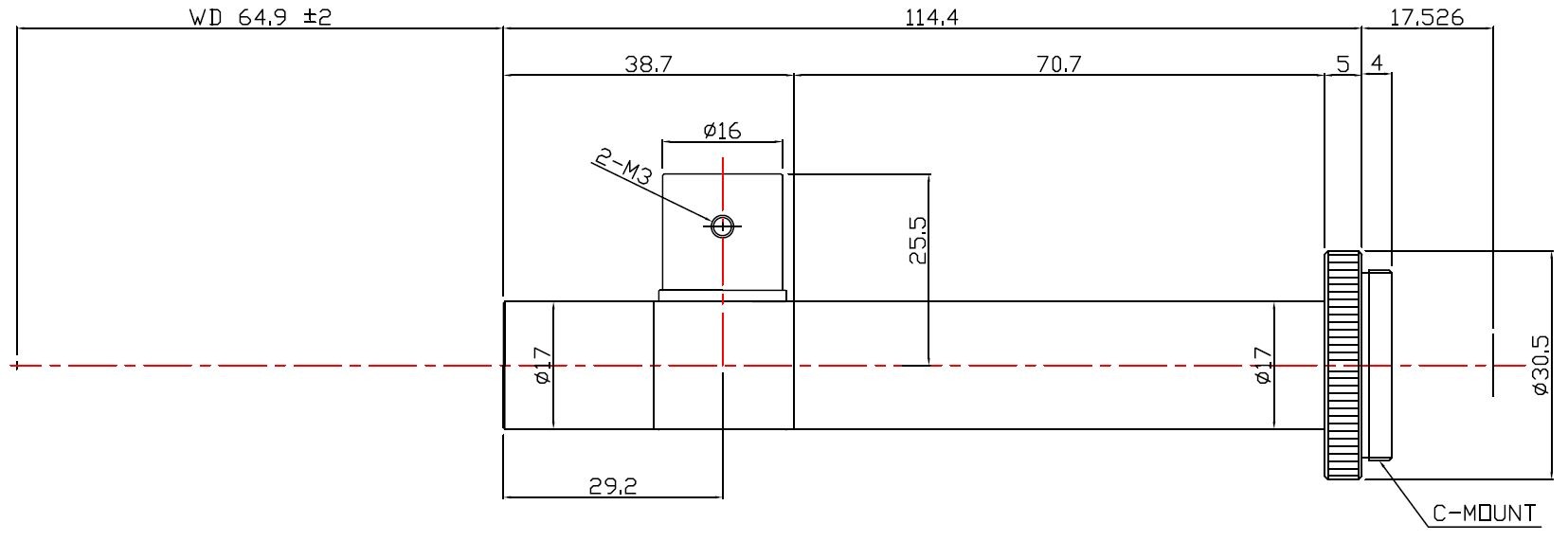

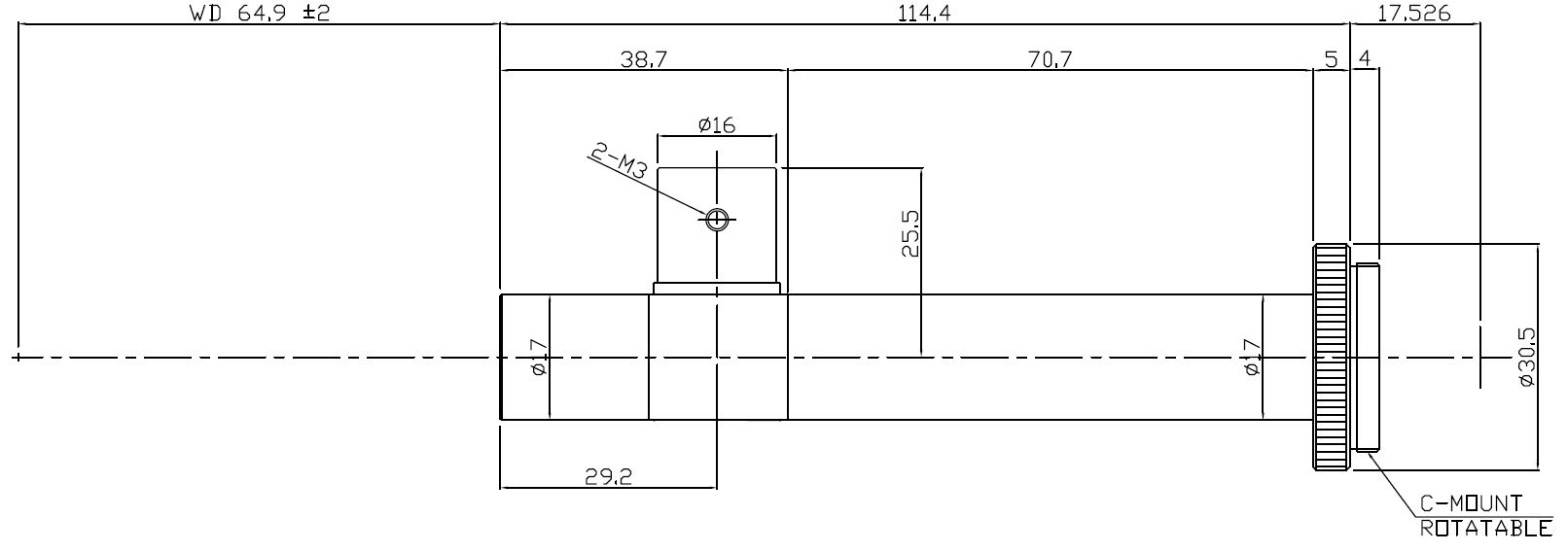

Drawing
