Lensagon TCST-50-65C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 5x, WD 65mm, F# 32.9, NA 0.076, DOF 109um, Opt.Dist. 0.05, Coaxial Version

 Compare
SKU: 10246 Category:

Product Description

The Object Side Telecentric Lens TCST-50-65C is suitable for sensors with an image format of 1/2 inch.

Magnification 5.00 x
Working Distance (WD) 65.00 mm
Depth of Field (DOF) 109.00 μm @ 40.00 μm
Resolution (Object Side) 4.40 μm
Image Format (max.) 1/2 inch
Working F-Number 32.90
Numerical Aperture (NA) 0.076
Field of View (FOV) 1.28mm x 0.96mm @ 1/2″
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

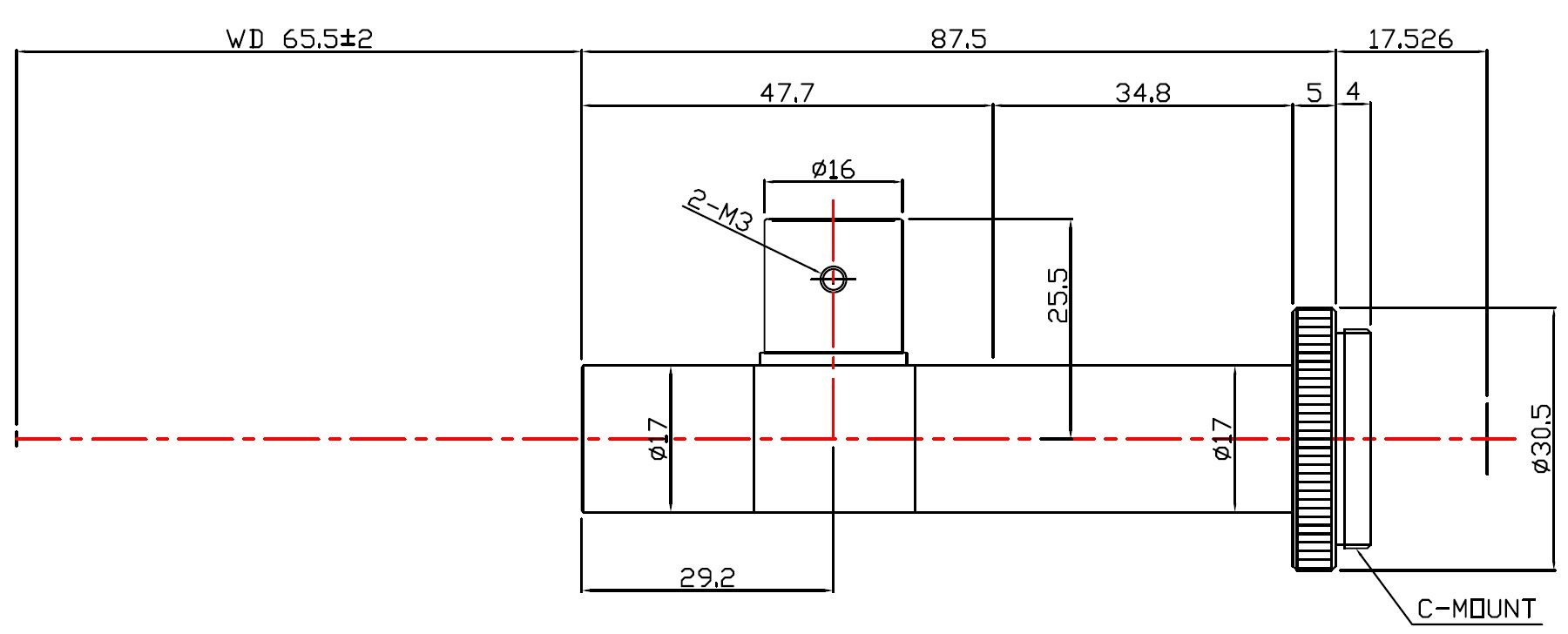

Drawing
