Lensagon TCST-15-300C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1.5x, WD 300mm, F# 21.4, NA 0.035, DOF 761um, Opt.Dist. 0.13, Coaxial Version

 Compare
SKU: 10727 Category:

Product Description

The Object Side Telecentric Lens TCST-15-300C is suitable for sensors with an image format of 1/2 inch.

Magnification 1.5 x
Working Distance (WD) 300 mm
Depth of Field (DOF) 761 μm @ 40 μm
Resolution (Object Side) 9.6 μm
Image Format (max.) 1/2 inch
Working F-Number 21.4
Numerical Aperture (NA) 0.035
Field of View (FOV) 4.26mm x 3.2mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.13 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

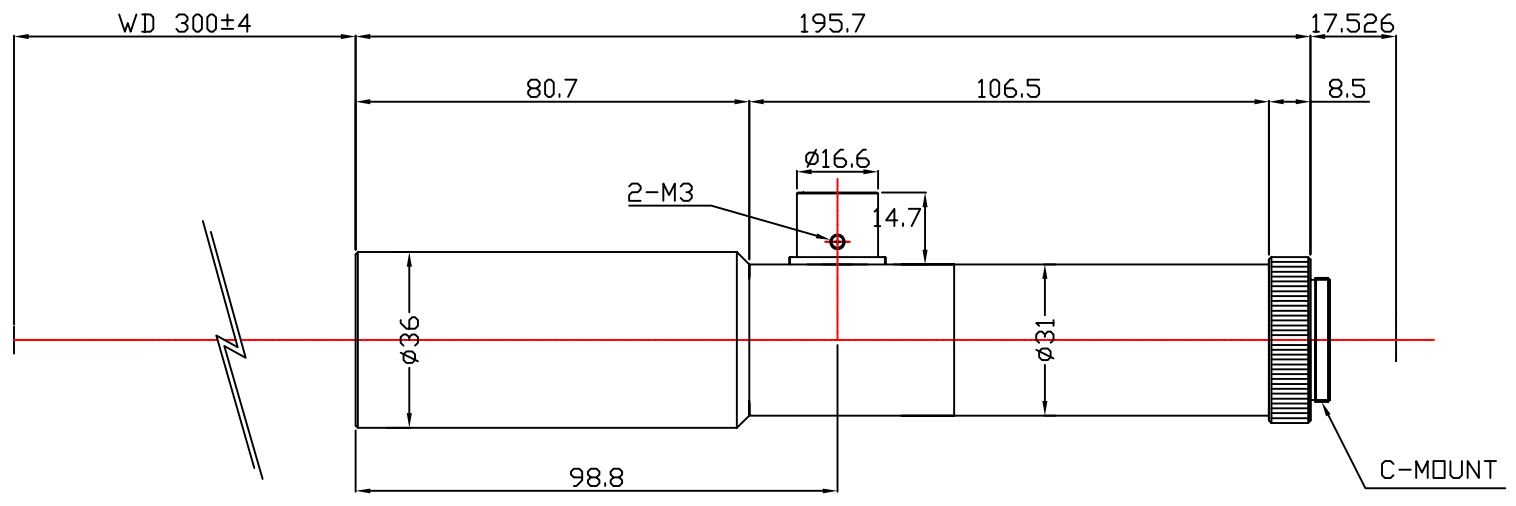

Drawing
