Lensagon TCST-40-110C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 4x, WD 110mm, F# 33.45, NA 0.06, DOF 167um, Opt.Dist. 0.16, Coaxial Version

 Compare
SKU: 10592 Category:

Product Description

The Object Side Telecentric Lens TCST-40-110C is suitable for sensors with an image format of 1/2 inch.

Magnification 4.00 x
Working Distance (WD) 110.00 mm
Depth of Field (DOF) 167.00 μm @ 40.00 μm
Resolution (Object Side) 5.60 μm
Image Format (max.) 1/2 inch
Working F-Number 33.45
Numerical Aperture (NA) 0.06
Field of View (FOV) 1.6mm x 1.2mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.01 °
Optical Distortion (max.) 0.16 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

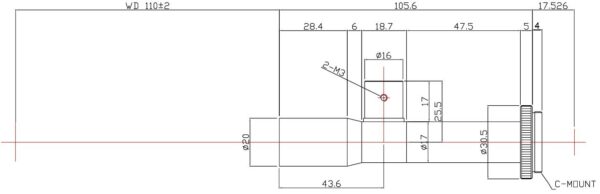

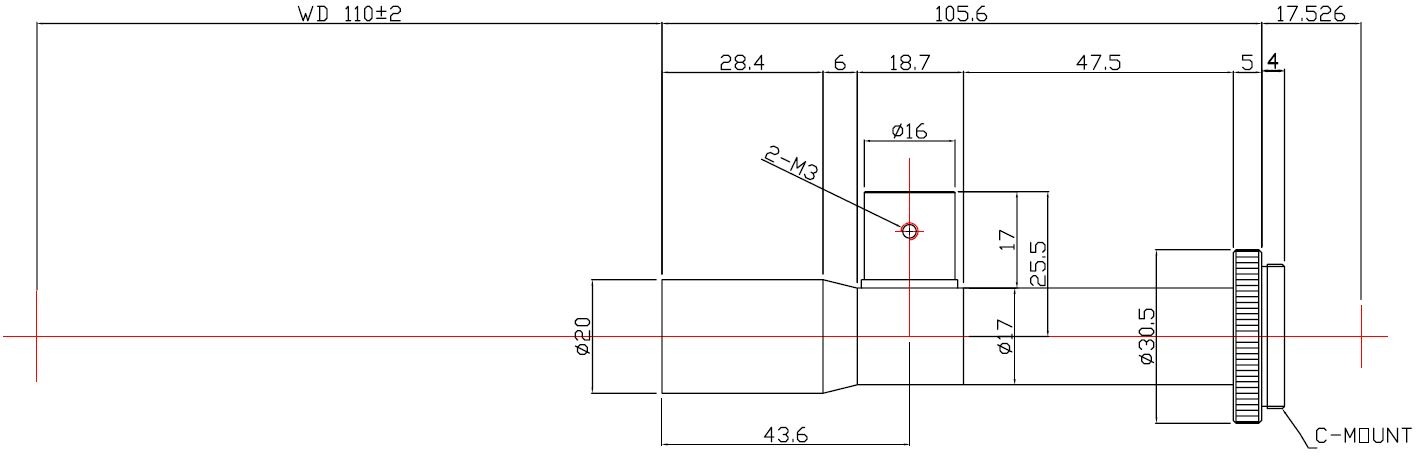

Drawing
