Lensagon TCST-24-110

Lensagon TCST-24-110

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 2.4x, WD 107mm, F# 26.7, NA 0.045, DOF 370um, Opt.Dist. 0.07

 Compare
SKU: 10590 Category:

Product Description

The Object Side Telecentric Lens TCST-24-110 is suitable for sensors with an image format of 1/2 inch.

Magnification2.4 x
Working Distance (WD)107 mm
Depth of Field (DOF)370 μm
Resolution (Object Side)7.5 μm
Image Format (max.)1/2 inch
Working F-Number26.7
Numerical Aperture (NA)0.045
Field of View (FOV)2.67mm x 2.0mm @ 1/2
Telecentric TypeObject Side
Telecentricity0.02 °
Optical Distortion (max.)0.07 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

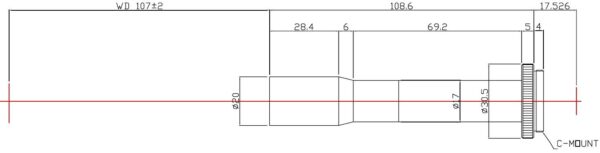

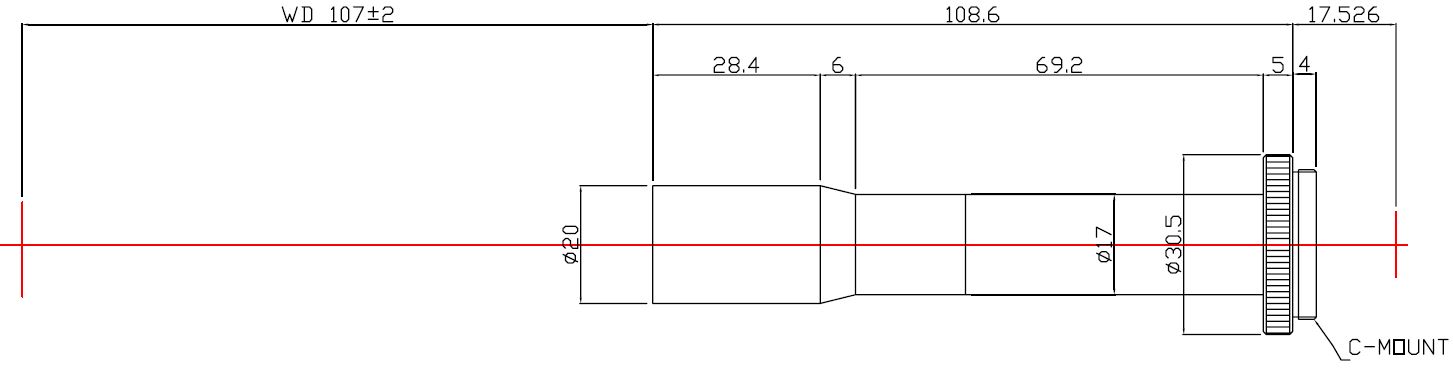

Drawing
