Lensagon TCST-075-220C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.75x, WD 220mm, F# 10, NA 0.037, DOF 1400um, Opt.Dist. 0.02, Coaxial Version

 Compare
SKU: 01040 Category:

Product Description

The Object Side Telecentric Lens TCST-075-220C is suitable for sensors with an image format of 1/2 inch.

Magnification 0.75 x
Working Distance (WD) 220.00 mm
Depth of Field (DOF) 1.4 mm @ 40.00 μm
Resolution (Object Side) 9.06 μm
Image Format (max.) 1/2 inch
Working F-Number 10.00
Numerical Aperture (NA) 0.037
Field of View (FOV) 11.7mm x 8.8mm @ 2/3″
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.02 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

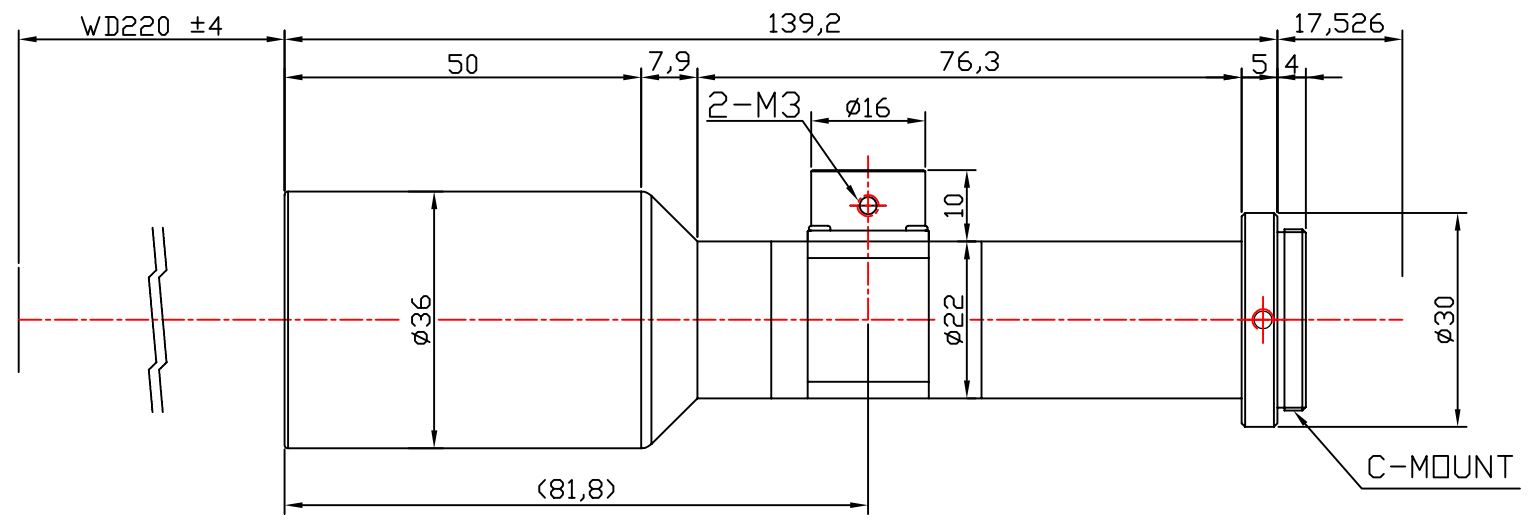

Drawing
