Lensagon TCST-05-65C

Lensagon TCST-05-65C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.5x, WD 65mm, F# 18.5, NA 0.027, DOF 1480um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 10552 Category:

Product Description

The Object Side Telecentric Lens TCST-05-65C is suitable for sensors with an image format of 1/2 inch.

Magnification0.5 x
Working Distance (WD)65 mm
Depth of Field (DOF)1.48 mm
Resolution (Object Side)12.4 μm
Image Format (max.)1/2 inch
Working F-Number18.5
Numerical Aperture (NA)0.027
Field of View (FOV)6.4mm x 4.8mm @ 1/2
Telecentric TypeObject Side
Telecentricity0.02 °
Optical Distortion (max.)0.03 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

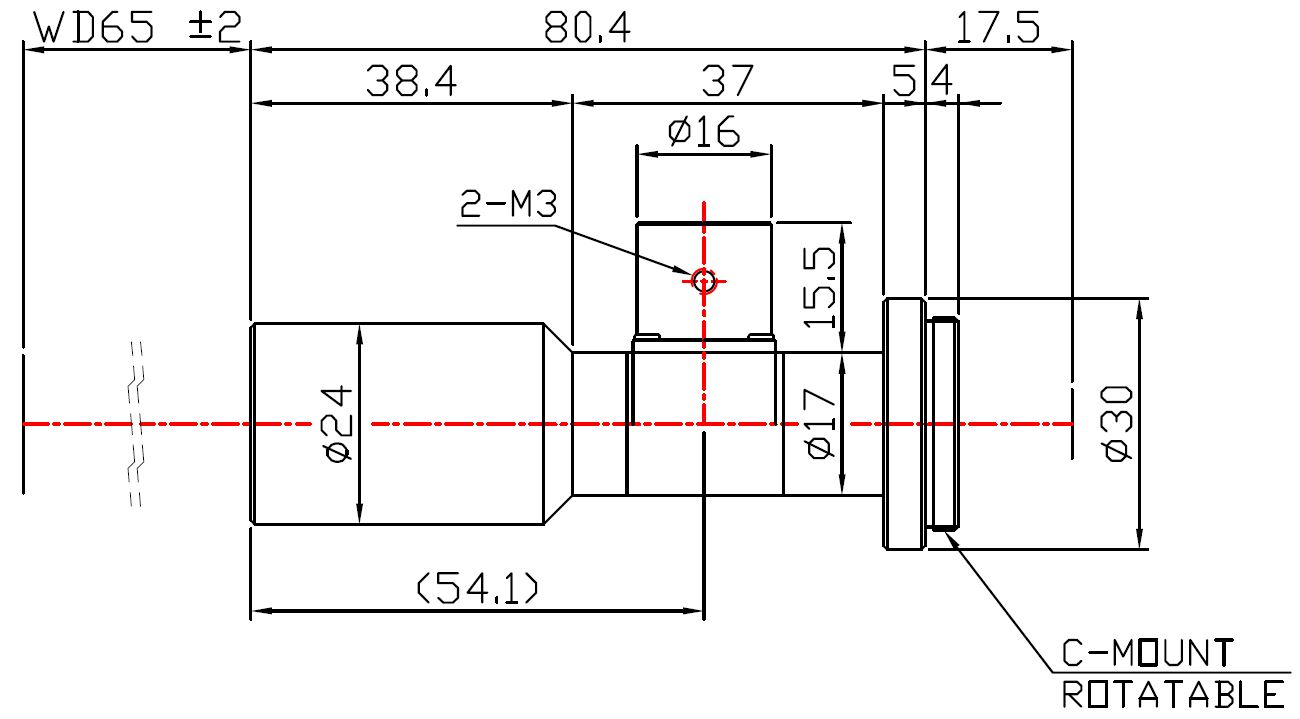

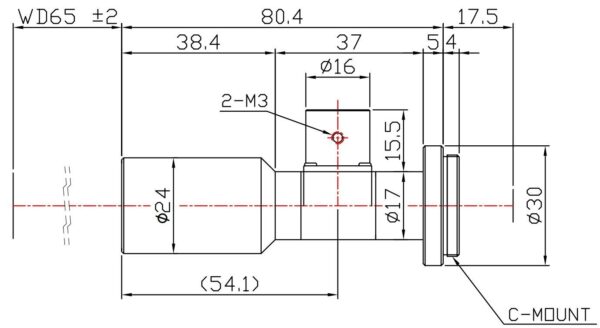

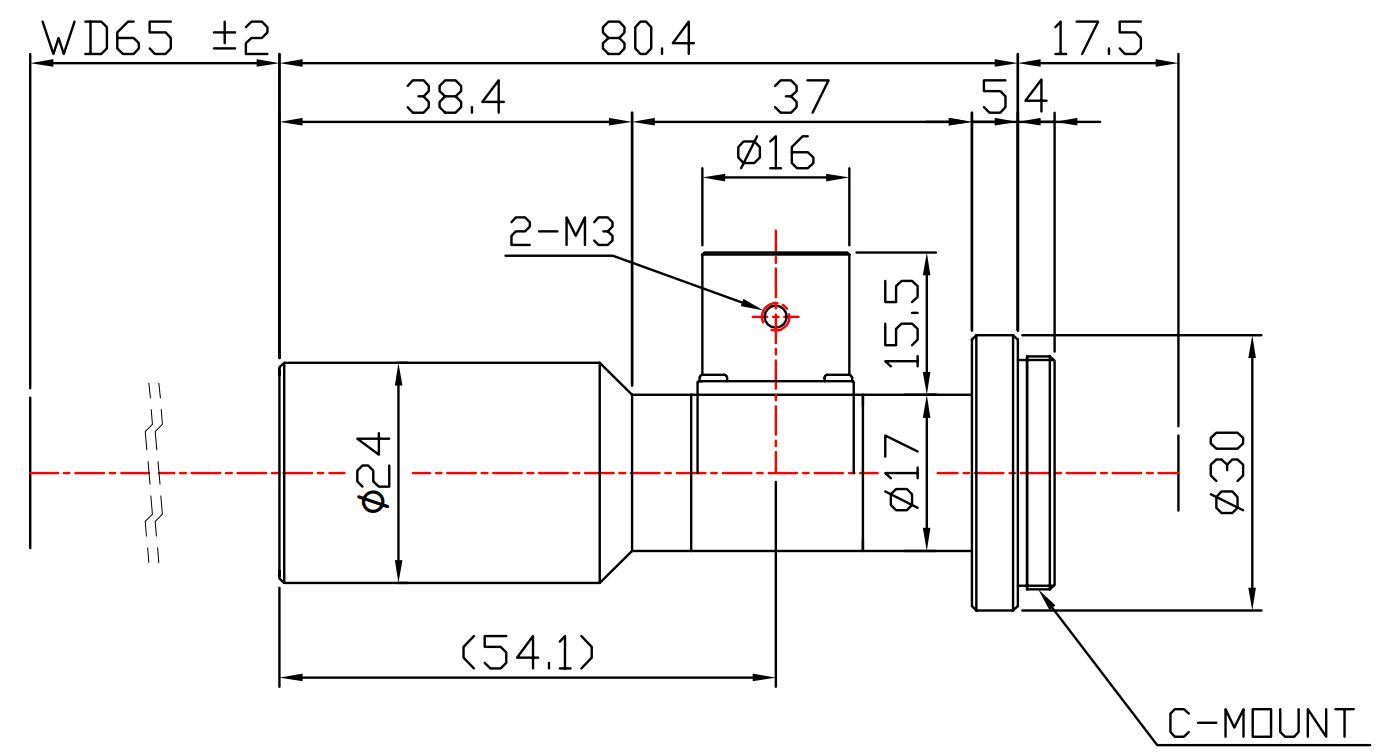

Drawing
