Lensagon TCST-10-113C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1x, WD 113mm, F# 20.8, NA 0.024, DOF 1660um, Opt.Dist. 0.05, Coaxial Version

 Compare
SKU: 10234 Category:

Product Description

The Object Side Telecentric Lens TCST-10-113C is suitable for sensors with an image format of 1/2 inch.

Magnification 1 x
Working Distance (WD) 113 mm
Depth of Field (DOF) 1.66 mm @ 40 μm
Resolution (Object Side) 14 μm
Image Format (max.) 1/2 inch
Working F-Number 20.8
Numerical Aperture (NA) 0.024
Field of View (FOV) 6.4mm x 4.8mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.05 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

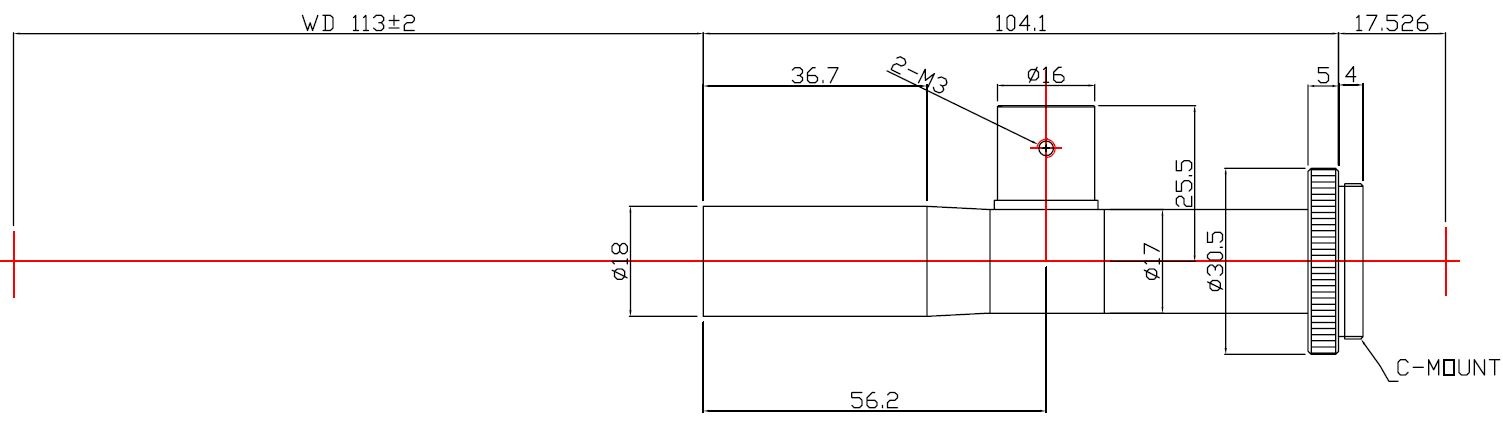

Drawing
