Lensagon TCST-08-110C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.8x, WD 110mm, F# 14.8, NA 0.027, DOF 1850um, Opt.Dist. 0.05, Coaxial Version

SKU: 10021 Category:

Product Description

The Object Side Telecentric Lens TCST-08-110C is suitable for sensors with an image format of 1/2 inch.

Magnification 0.8
Mount C-Mount
Aperture 14.8
Working Distance (WD) 110 mm
Depth of Field (DOF) 1850 μm
Resolution (Object Side) 12.4 μm
Numerical Aperture (NA) 0.027
Image Format (max.) 1/2 inch
Field of View (FOV) 8mm x 6mm@1/2″ CCD
Lens Type Object Side
Telecentricity 0.05
Optical Distortion (max.) 0.05 %
Special Feature Standard

Additional Information

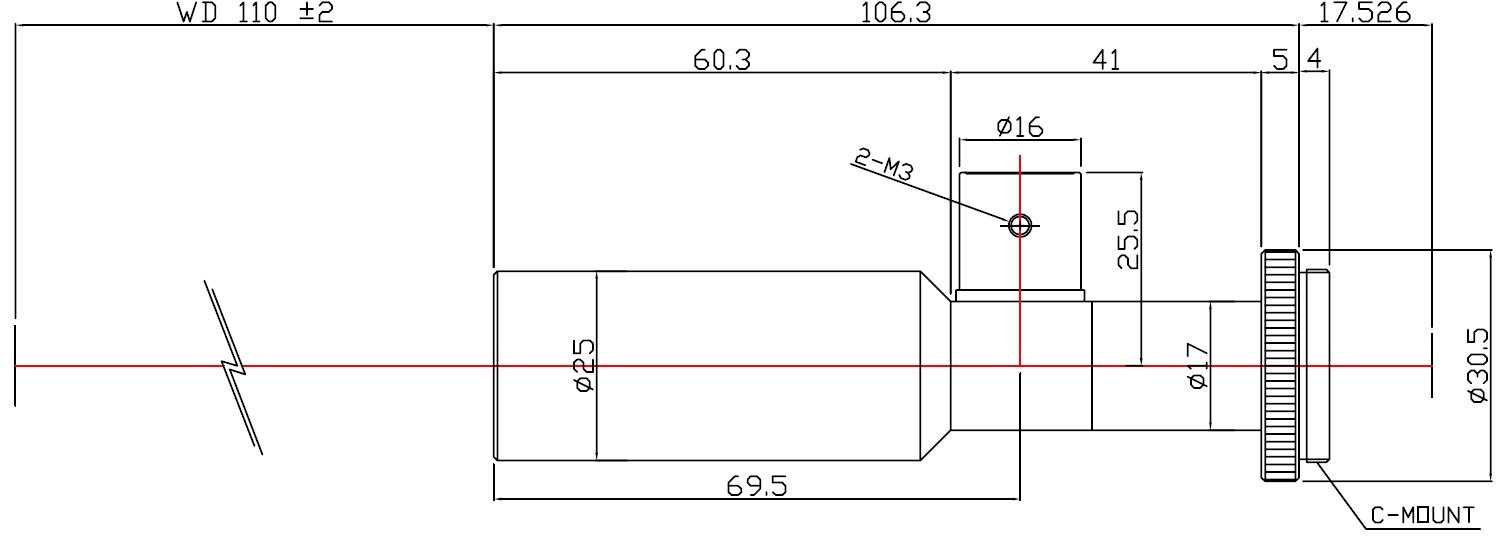

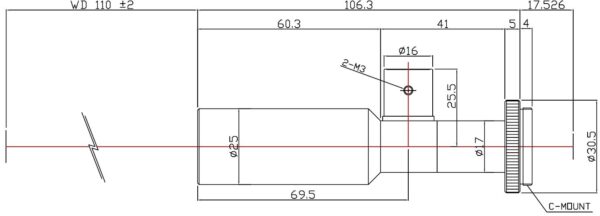

Technical Drawing:
