Lensagon TCST-20-156C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 2x, WD 156mm, F# 26.3, NA 0.038, DOF 526um, Opt.Dist. 0.19, Coaxial Version

 Compare
SKU: 10602 Category:

Product Description

The Object Side Telecentric Lens TCST-20-156C is suitable for sensors with an image format of 1/2 inch.

Magnification 2 x
Working Distance (WD) 156 mm
Depth of Field (DOF) 526 μm @ 40 μm
Resolution (Object Side) 8.8 μm
Image Format (max.) 1/2 inch
Working F-Number 26.3
Numerical Aperture (NA) 0.038
Field of View (FOV) 3.2mm x 2.4mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.19 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

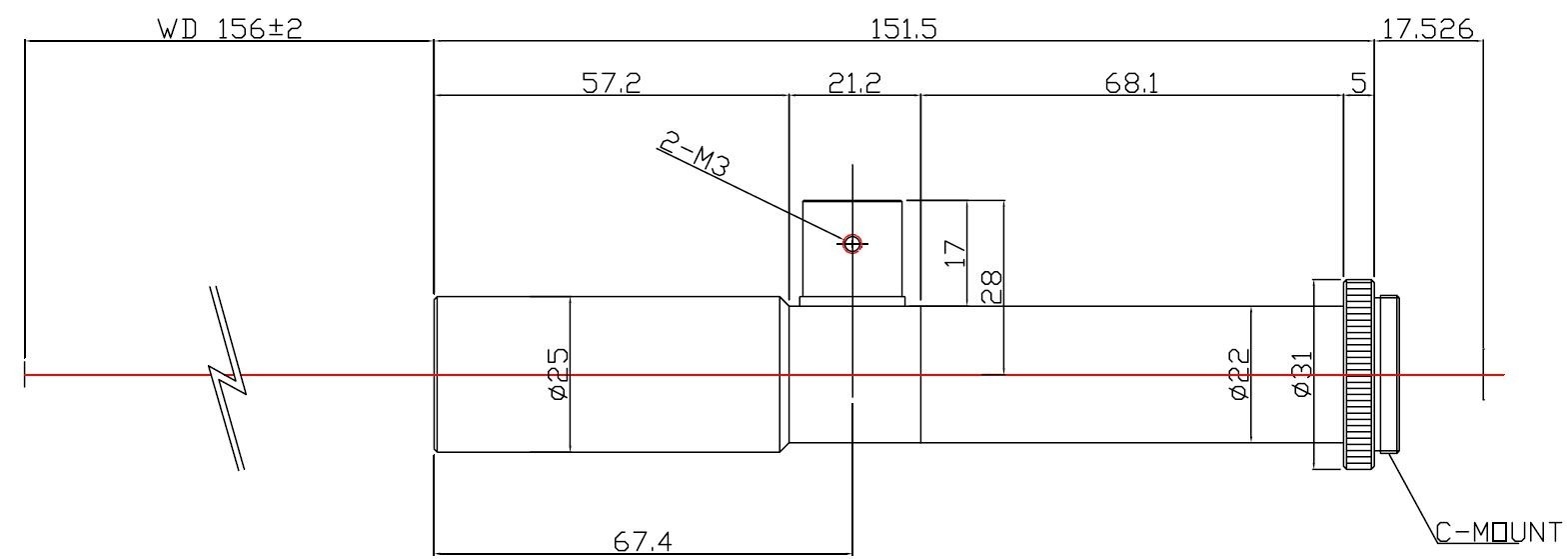

Drawing
