Lensagon TCST-10-300C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1x, WD 300mm, F# 14.2, NA 0.035, DOF 1.1um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 10726 Category:

Product Description

The Object Side Telecentric Lens TCST-10-300C is suitable for sensors with an image format of 1/2 inch.

Magnification 1.00 x
Working Distance (WD) 300.00 mm
Depth of Field (DOF) 1.10 μm @ 40.00 μm
Resolution (Object Side) 9.60 μm
Image Format (max.) 1/2 inch
Working F-Number 14.20
Numerical Aperture (NA) 0.035
Field of View (FOV) 6.4mm x 4.8mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

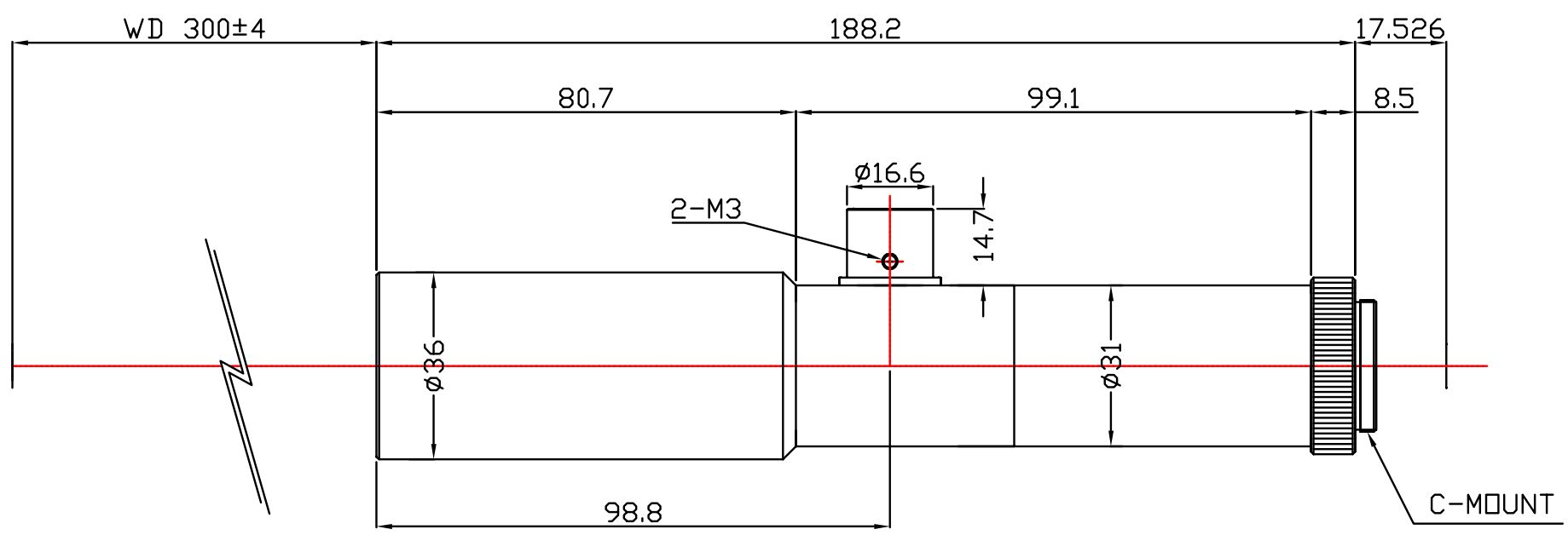

Drawing
