Lensagon TCST-05-65

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.5x, WD 65mm, F# 18.5, NA 0.027, DOF 1480um, Opt.Dist. 0.03

 Compare
SKU: 10551 Category:

Product Description

The Object Side Telecentric Lens TCST-05-65 is suitable for sensors with an image format of 1/2 inch.

Magnification 0.5 x
Working Distance (WD) 65 mm
Depth of Field (DOF) 1.48 mm @ 40 μm
Resolution (Object Side) 12.4 μm
Image Format (max.) 1/2 inch
Working F-Number 18.5
Numerical Aperture (NA) 0.027
Field of View (FOV) 6.4mm x 4.8mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

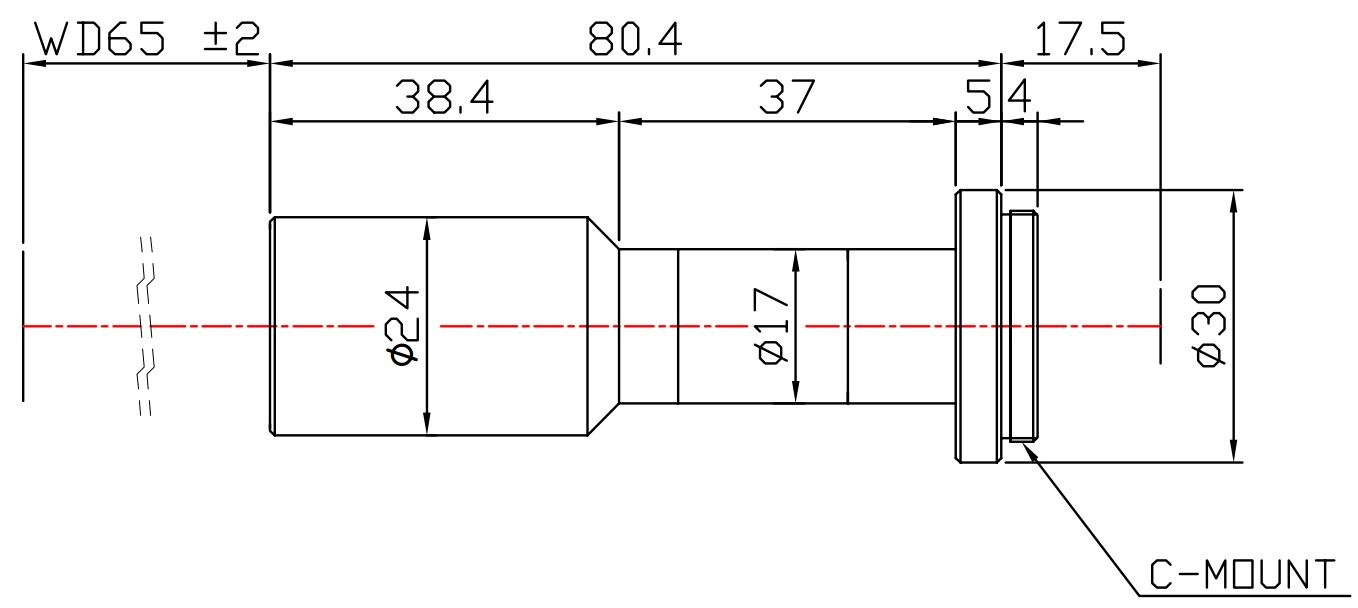

Drawing
