Lensagon TCST-12-173

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1.2x, WD 173mm, F# 20, NA 0.03, DOF 1100um, Opt.Dist. 0.13

 Compare
SKU: 10603 Category:

Product Description

The Object Side Telecentric Lens TCST-12-173 is suitable for sensors with an image format of 1/2 inch.

Magnification 1.20 x
Working Distance (WD) 173.00 mm
Depth of Field (DOF) 1.1 mm @ 40.00 μm
Resolution (Object Side) 11.20 μm
Image Format (max.) 1/2 inch
Working F-Number 20.00
Numerical Aperture (NA) 0.03
Field of View (FOV) 5.3mm x 4.0mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.13 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

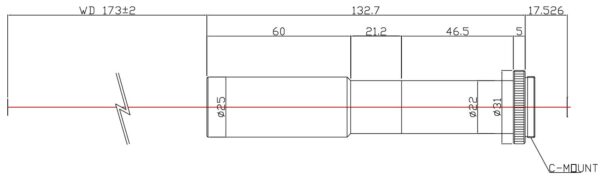

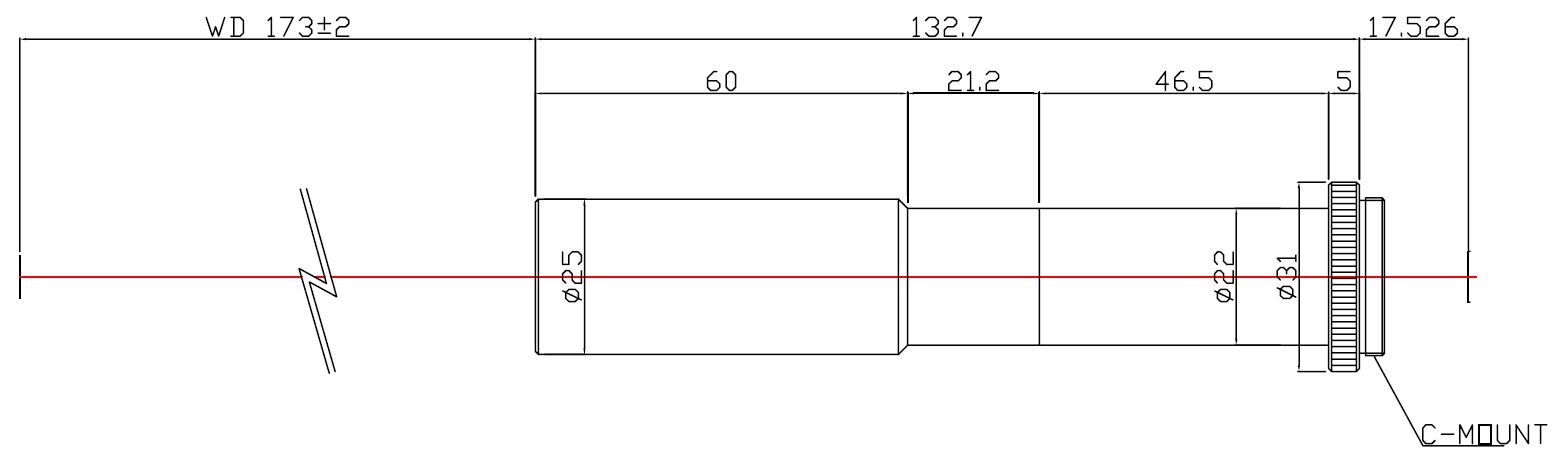

Drawing
