Lensagon TCST-15-200

Lensagon TCST-15-200

Standard Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 1.5x, WD 200mm, F# 11.2, NA 0.067, DOF 398um, Opt.Dist. 0.08

 Compare
SKU: 10722 Category:

Product Description

The Object Side Telecentric Lens TCST-15-200 is suitable for sensors with an image format of 2/3 inch.

Magnification1.5 x
Working Distance (WD)200 mm
Depth of Field (DOF)398 μm
Resolution (Object Side)5 μm
Image Format (max.)2/3 inch
Working F-Number11.2
Numerical Aperture (NA)0.067
Field of View (FOV)5.86mm x 4.4mm @ 2/3
Telecentric TypeObject Side
Telecentricity0.03 °
Optical Distortion (max.)0.08 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

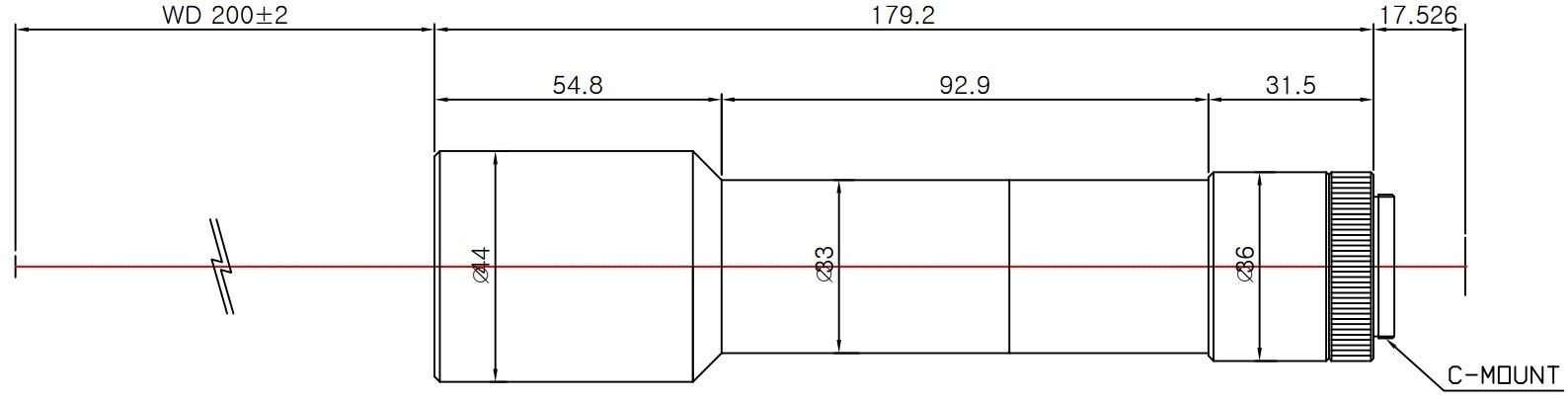

Drawing
