Lensagon TCST-05-110C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.5x, WD 110mm, F# 15, NA 0.0166, DOF 4800um, Opt.Dist. 0.04, Coaxial Version

 Compare
SKU: 10587 Category:

Product Description

The Object Side Telecentric Lens TCST-05-110C is suitable for sensors with an image format of 1/2 inch.

Magnification 0.50 x
Working Distance (WD) 110.00 mm
Depth of Field (DOF) 4.8 mm @ 40.00 μm
Resolution (Object Side) 20.21 μm
Image Format (max.) 1/2 inch
Working F-Number 15.00
Numerical Aperture (NA) 0.0166
Field of View (FOV) 12.8mm x 9.6mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.04 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

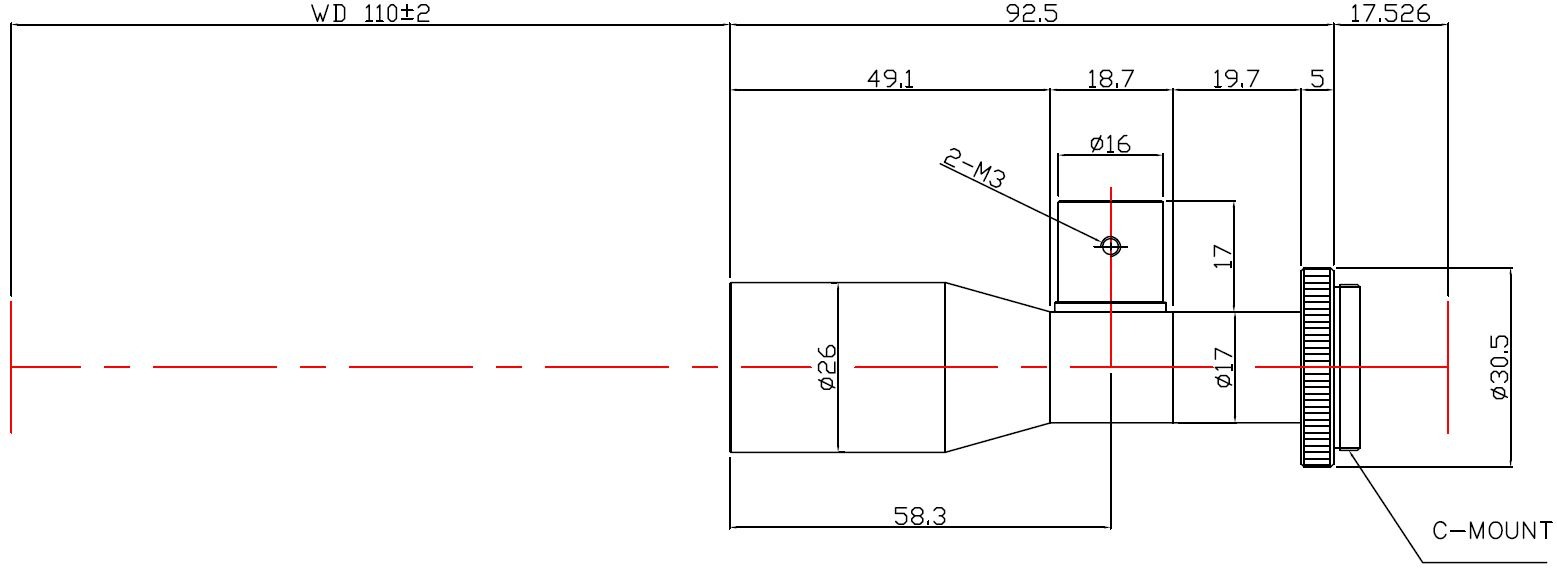

Drawing
