Lensagon TCST-05-400C

Lensagon TCST-05-400C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.5x, WD 402mm, F# 9.6, NA 0.026, DOF 3100um, Opt.Dist. 0.05, Coaxial Version

 Compare
SKU: 01041 Category:

Product Description

The Object Side Telecentric Lens TCST-05-400C is suitable for sensors with an image format of 1/2 inch.

Magnification0.5 x
Working Distance (WD)402 mm
Depth of Field (DOF)3.1 mm
Resolution (Object Side)12.9 μm
Image Format (max.)1/2 inch
Working F-Number9.6
Numerical Aperture (NA)0.026
Field of View (FOV)12.8mm x 9.6mm @ 1/2″
Telecentric TypeObject Side
Telecentricity0.03 °
Optical Distortion (max.)0.05 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

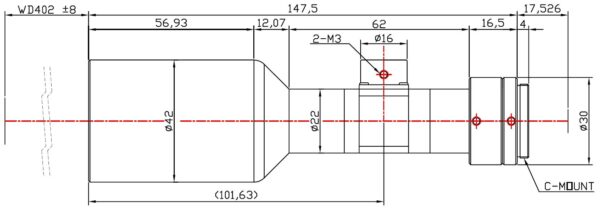

Drawing
