Lensagon TCST-25-220

Standard Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 2.5x, WD 220mm, F# 25, NA 0.05, DOF 160um, Opt.Dist. 0.08

 Compare
SKU: 11088 Category:

Product Description

The Object Side Telecentric Lens TCST-25-220 is suitable for sensors with an image format of 2/3 inch.

Magnification 2.50 x
Working Distance (WD) 220.00 mm
Depth of Field (DOF) 160.00 μm @ 40.00 μm
Resolution (Object Side) 6.71 μm
Image Format (max.) 2/3 inch
Working F-Number 25.00
Numerical Aperture (NA) 0.05
Field of View (FOV) 3.52mm x 2.64mm @ 2/3
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.08 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

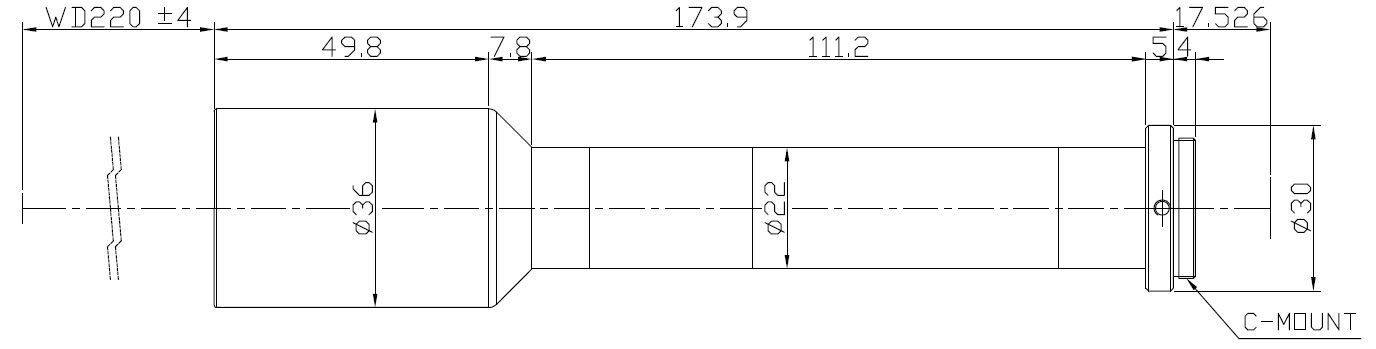

Drawing
