Lensagon TCST-60-40C

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 6x, WD 40mm, F# 37.4, NA 0.08, DOF 83um, Opt.Dist. 0.02, Coaxial Version

 Compare
SKU: 10248 Category:

Product Description

The Object Side Telecentric Lens TCST-60-40C is suitable for sensors with an image format of 1/2 inch.

Magnification 6
Mount C-Mount
Aperture 37.4
Working Distance (WD) 40 mm
Depth of Field (DOF) 83 μm
Resolution (Object Side) 4.2 μm
Numerical Aperture (NA) 0.08
Image Format (max.) 1/2 inch
Field of View (FOV) 1.06mm x 0.8mm@1/2″ CCD
Lens Type Object Side
Telecentricity 0.02
Optical Distortion (max.) 0.02 %
Special Feature Standard
pdf

Additional Information

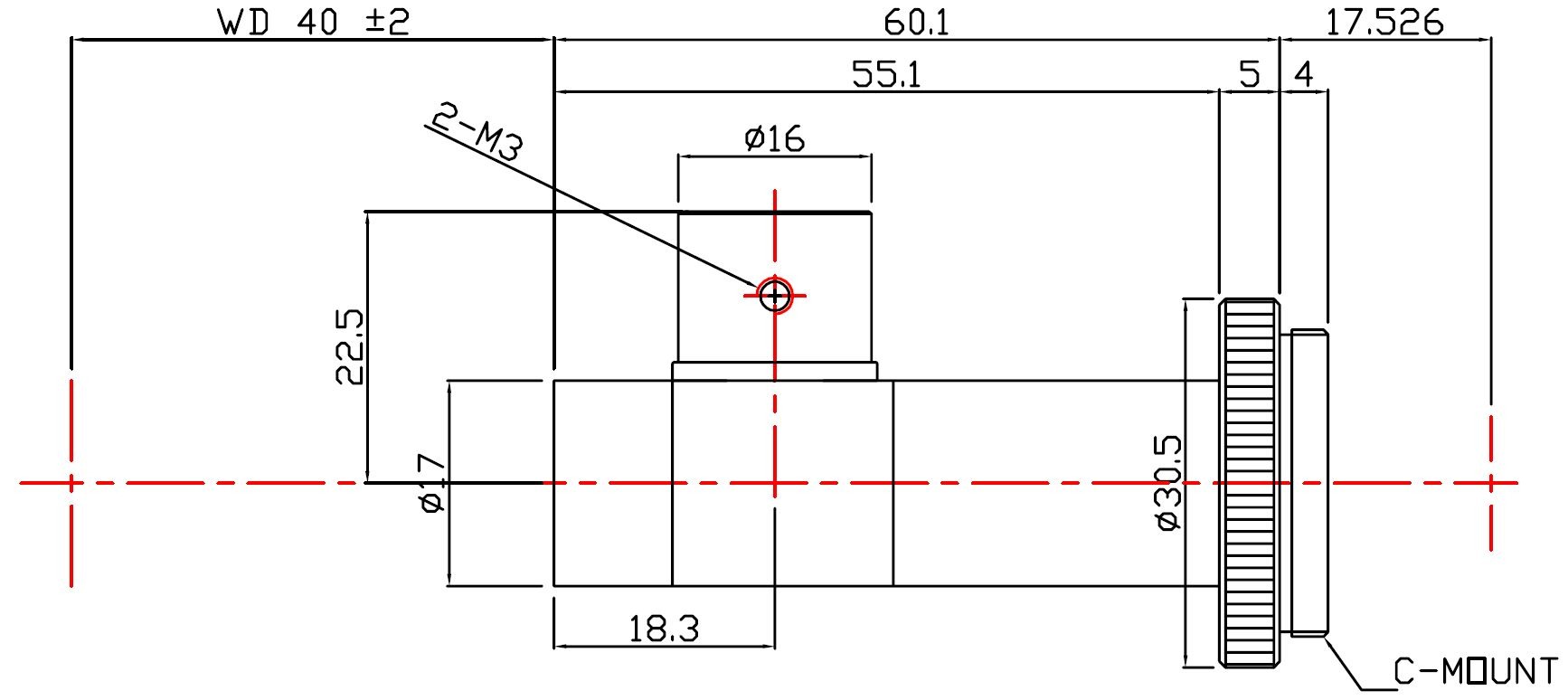

Technical Drawing:

Drawing
