Lensagon TCST-50-40

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 5x, WD 40mm, F# 31.25, NA 0.08, DOF 100um, Opt.Dist. 0.05

 Compare
SKU: 10151 Category:

Product Description

The Object Side Telecentric Lens TCST-50-40 is suitable for sensors with an image format of 1/2 inch.

Magnification 5.00 x
Working Distance (WD) 40.00 mm
Depth of Field (DOF) 100.00 μm @ 40.00 μm
Resolution (Object Side) 4.20 μm
Image Format (max.) 1/2 inch
Working F-Number 31.25
Numerical Aperture (NA) 0.08
Field of View (FOV) 1.28mm x 0.96mm @ 1/2″
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

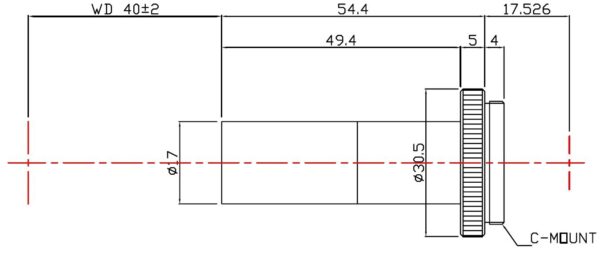

Drawing
