Lensagon TCST-40-200

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 4x, WD 200mm, F# 25, NA 0.08, DOF 125um, Opt.Dist. 0.13

 Compare
SKU: 10447 Category:

Product Description

The Object Side Telecentric Lens TCST-40-200 is suitable for sensors with an image format of 1/2 inch.

Magnification 4 x
Working Distance (WD) 200 mm
Depth of Field (DOF) 125 μm @ 40 μm
Resolution (Object Side) 4.2 μm
Image Format (max.) 1/2 inch
Working F-Number 25
Numerical Aperture (NA) 0.08
Field of View (FOV) 1.6mm x 1.2mm @ /2″
Telecentric Type Object Side
Telecentricity 0.015 °
Optical Distortion (max.) 0.13 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

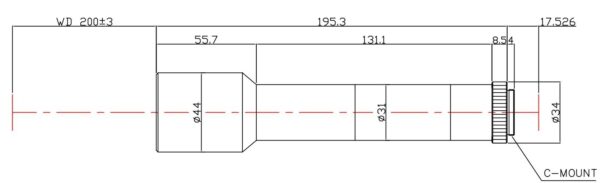

Drawing
