Lensagon TCST-20-200

Lensagon TCST-20-200

Standard Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 2x, WD 200mm, F# 12.5, NA 0.09, DOF 250um, Opt.Dist. 0.02

 Compare
SKU: 10612 Category:

Product Description

The Object Side Telecentric Lens TCST-20-200 is suitable for sensors with an image format of 1/2 inch.

Magnification 2 x
Mount C-Mount
Working F-Number 12.5
Working Distance (WD) 200 mm
Depth of Field (DOF) 250 μm
Resolution (Object Side) 4.2 μm
Numerical Aperture (NA) 0.09
Image Format (max.) 1/2 inch
Field of View (FOV) 3.2mm x 2.4mm@1/2″ CCD
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.02 %
Special Feature Standard
pdf

Additional Information

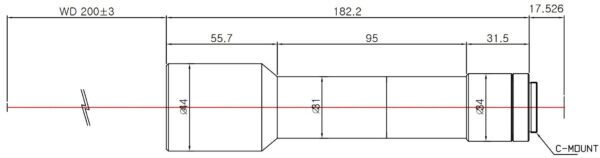

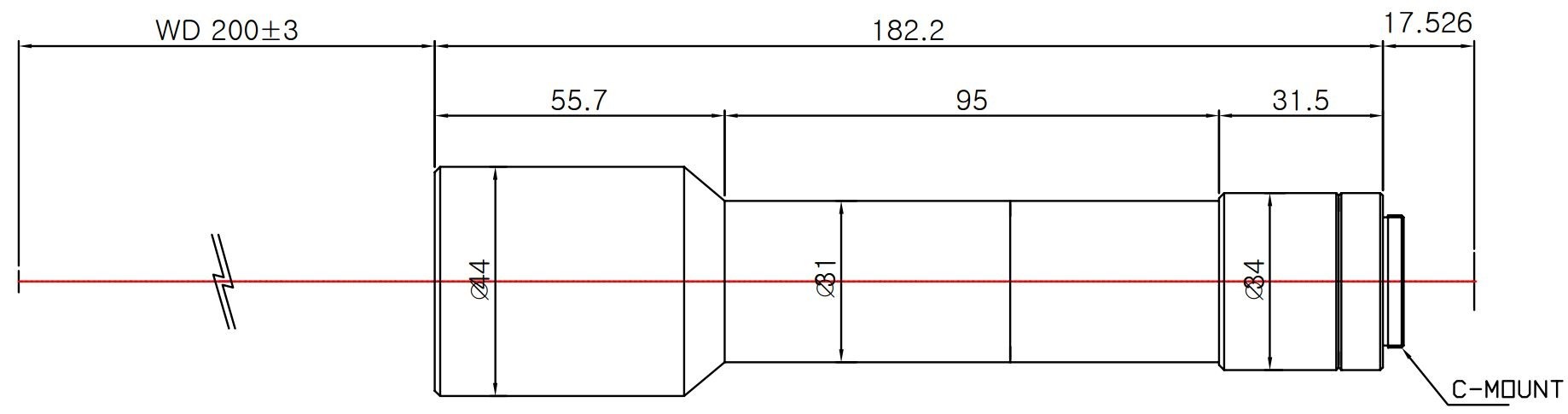

Technical Drawing:

Drawing
