Lensagon MF8M-055-210

Lensagon MF8M-055-210

Macro Lens for 8M (23mm) sensor, Magnification: 0.55x, WD 210mm, F# 8.3, NA 0.033, DOF 1200um, Opt.Dist. 0.04

 Compare
SKU: 10964 Category:

Product Description

The Macro Lens MF8M-055-210 is suitable for sensors up to 8 megapixel and with an image format of 8M (23mm).

Magnification 0.55 x
Mount F-Mount *
Working F-Number 8.3
Working Distance (WD) 210 mm
Depth of Field (DOF) 1.2 mm
Resolution (Object Side) 10.2 μm
Numerical Aperture (NA) 0.033
Image Format (max.) 8M (23mm)
Megapixel (max.) 8 MP
Field of View (FOV) 32.94mm x 24.7mm@8M CCD
Telecentric Type Macro
Optical Distortion (max.) 0.04 %

* Other mounts are available on request.

pdf

Additional Information

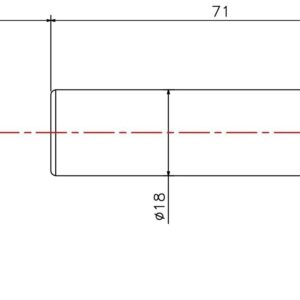

Drawing
