Lensagon MC4M-03-170I

Lensagon MC4M-03-170I

Macro Lens for 1 inch sensor, Magnification: 0.3x, WD 170mm, F# 7.5, NA 0.02, DOF 1400um, Opt.Dist. 0.06

 Compare
SKU: 10952 Category:

Product Description

The Macro Lens MC4M-03-170I is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.3 x
Mount C-Mount *
Working F-Number 7.5
Working Distance (WD) 170 mm
Depth of Field (DOF) 1.4 mm
Resolution (Object Side) 16.7 μm
Numerical Aperture (NA) 0.02
Image Format (max.) 1 inch
Megapixel (max.) 4 MP
Field of View (FOV) 37.53mm x 37.53mm@4M CCD
Telecentric Type Macro
Optical Distortion (max.) 0.06 %

* Other mounts are available on request.

pdf

Additional Information

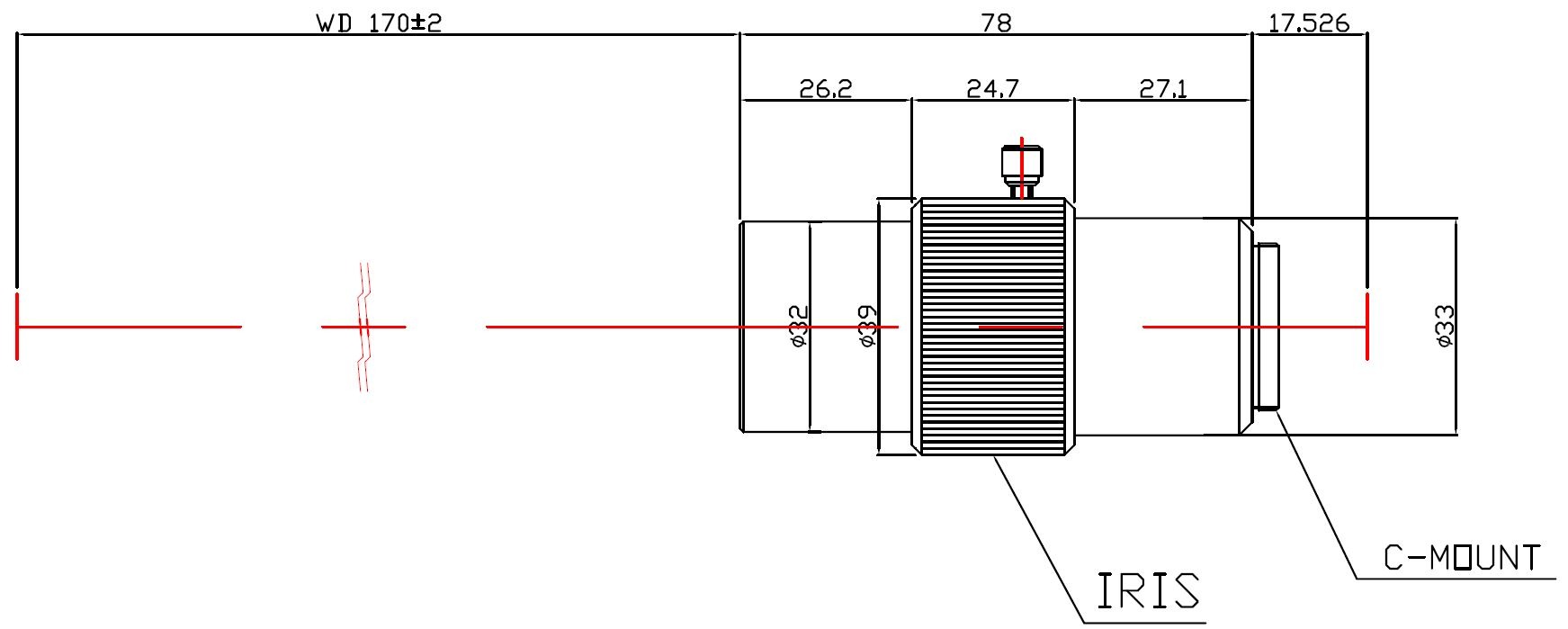

Drawing
