Lensagon MC5M-019-240

Macro Lens for 2/3 inch sensor, Magnification: 0.19x, WD 240mm, F# 5, NA 0.019, DOF 5500um, Opt.Dist. 0.03

 Compare
SKU: 10947 Category:

Product Description

The Macro Lens MC5M-019-240 is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 0.19 x
Mount C-Mount *
Working F-Number 5
Working Distance (WD) 240 mm
Depth of Field (DOF) 5.5 mm
Resolution (Object Side) 17.7 μm
Numerical Aperture (NA) 0.019
Image Format (max.) 2/3 inch
Megapixel (max.) 5 MP
Field of View (FOV) 46.31mm x 34.76mm@5M CCD
Telecentric Type Macro
Optical Distortion (max.) 0.03 %

* Other mounts are available on request.

pdf

Additional Information

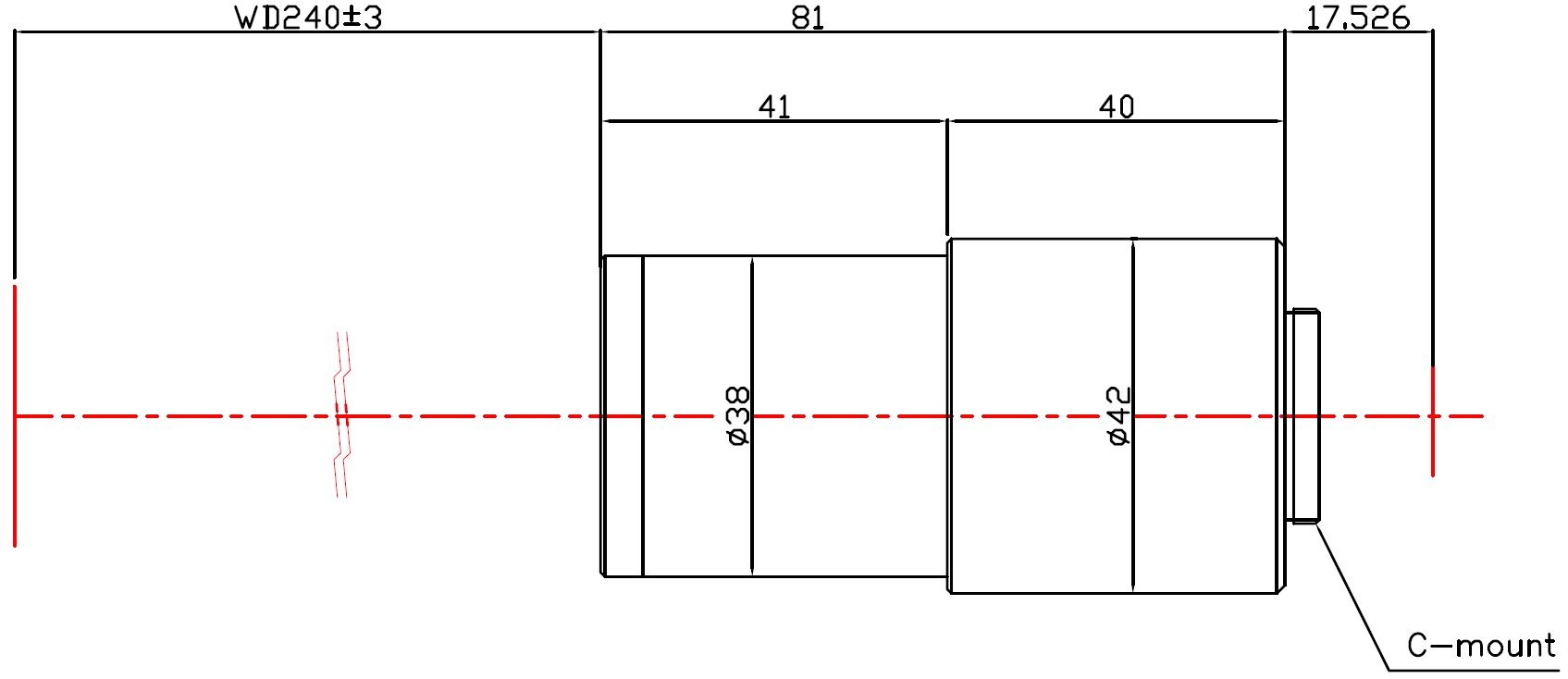

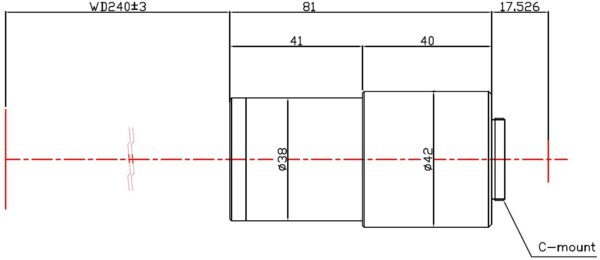

Drawing
