Lensagon MC4M-015-255I

Macro Telecentric Lens for 1 inch sensor, Magnification: 0.15x, WD 255mm, F# 6.7, NA 0.0113, DOF 1300um, Opt.Dist. 0.08

 Compare
SKU: 10949 Category:

Product Description

The Macro Telecentric Lens MC4M-015-255I is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.15
Mount C-Mount
Aperture 6.7
Working Distance (WD) 255 mm
Depth of Field (DOF) 1300 μm
Resolution (Object Side) 29.8 μm
Numerical Aperture (NA) 0.0113
Image Format (max.) 1 inch
Megapixel 4
Field of View (FOV) 45mm x 45mm@4M CCD
Lens Type Macro
Optical Distortion (max.) 0.08 %
pdf

Additional Information

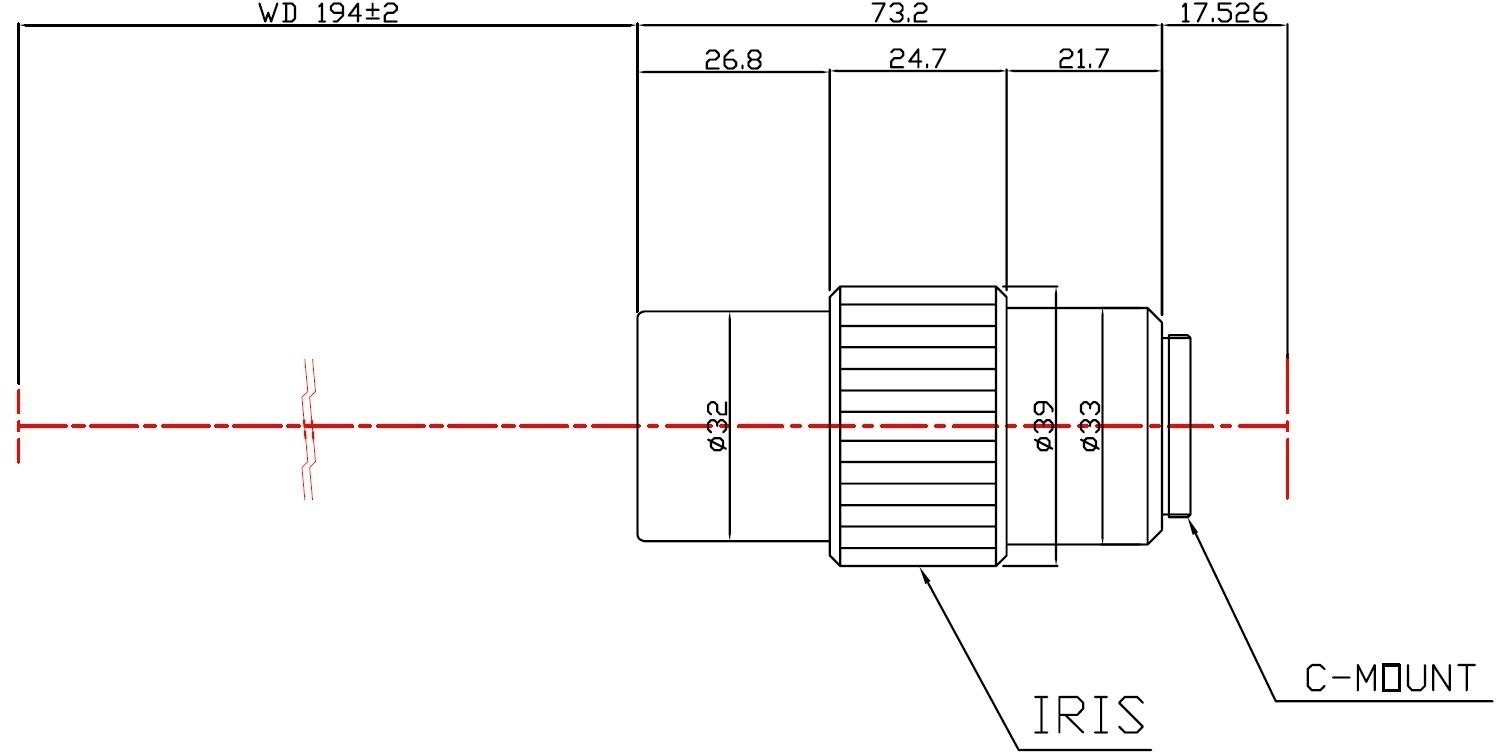

Technical Drawing:

Drawing
