Lensagon MC4M-05-253

Macro Telecentric Lens for 1 inch sensor, Magnification: 0.5x, WD 253mm, F# 8.3, NA 0.03, DOF 1500um, Opt.Dist. 0.06

 Compare
SKU: 10954 Category:

Product Description

The Macro Telecentric Lens MC4M-05-253 is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.5
Mount C-Mount
Aperture 8.3
Working Distance (WD) 253 mm
Depth of Field (DOF) 1500 μm
Resolution (Object Side) 11.2 μm
Numerical Aperture (NA) 0.03
Image Format (max.) 1 inch
Megapixel 4
Field of View (FOV) 22.52mm x 22.52mm@4M CCD
Lens Type Macro
Optical Distortion (max.) 0.06 %
pdf

Additional Information

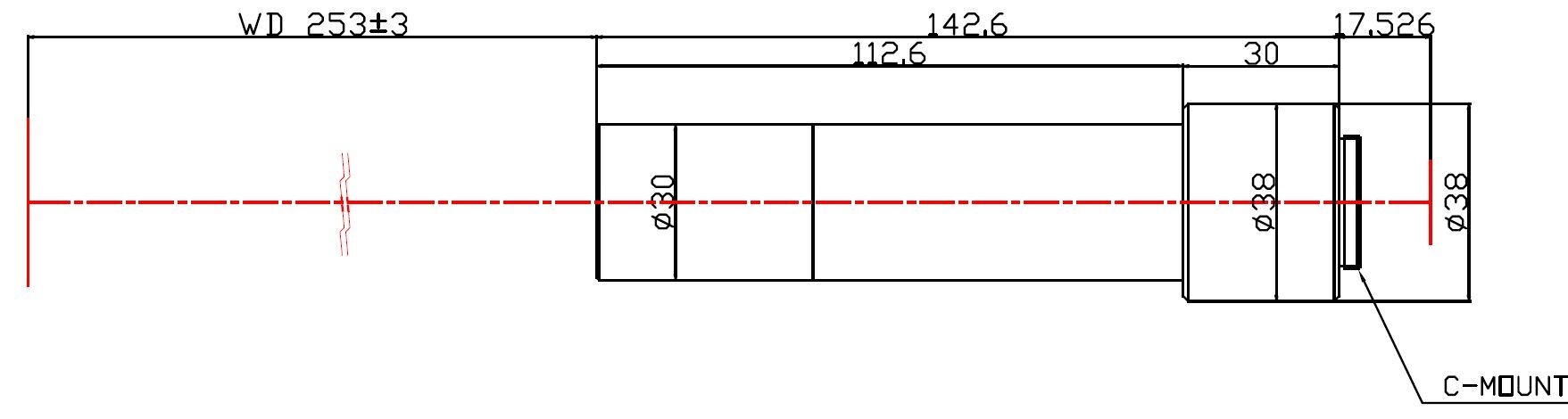

Technical Drawing:

Drawing
