Lensagon MF8M-0247-267

Lensagon MF8M-0247-267

Macro Lens for 8M (23mm) sensor, Magnification: 0.247x, WD 267mm, F# 5, NA 0.0247, DOF 3600um, Opt.Dist. 0.01

 Compare
SKU: 10958 Category:

Product Description

The Macro Lens MF8M-0247-267 is suitable for sensors up to 8 megapixel and with an image format of 8M (23mm).

Magnification0.247
MountF-Mount
Working F-Number5
Working Distance (WD)267 mm
Depth of Field (DOF)3.6 mm
Resolution (Object Side)13.6 μm
Numerical Aperture (NA)0.0247
Image Format (max.)8M (23mm)
Megapixel8
Field of View (FOV)73.36mm x 55.02m@8M CCD
Lens TypeMacro
Optical Distortion (max.)0.01 %
pdf

Additional Information

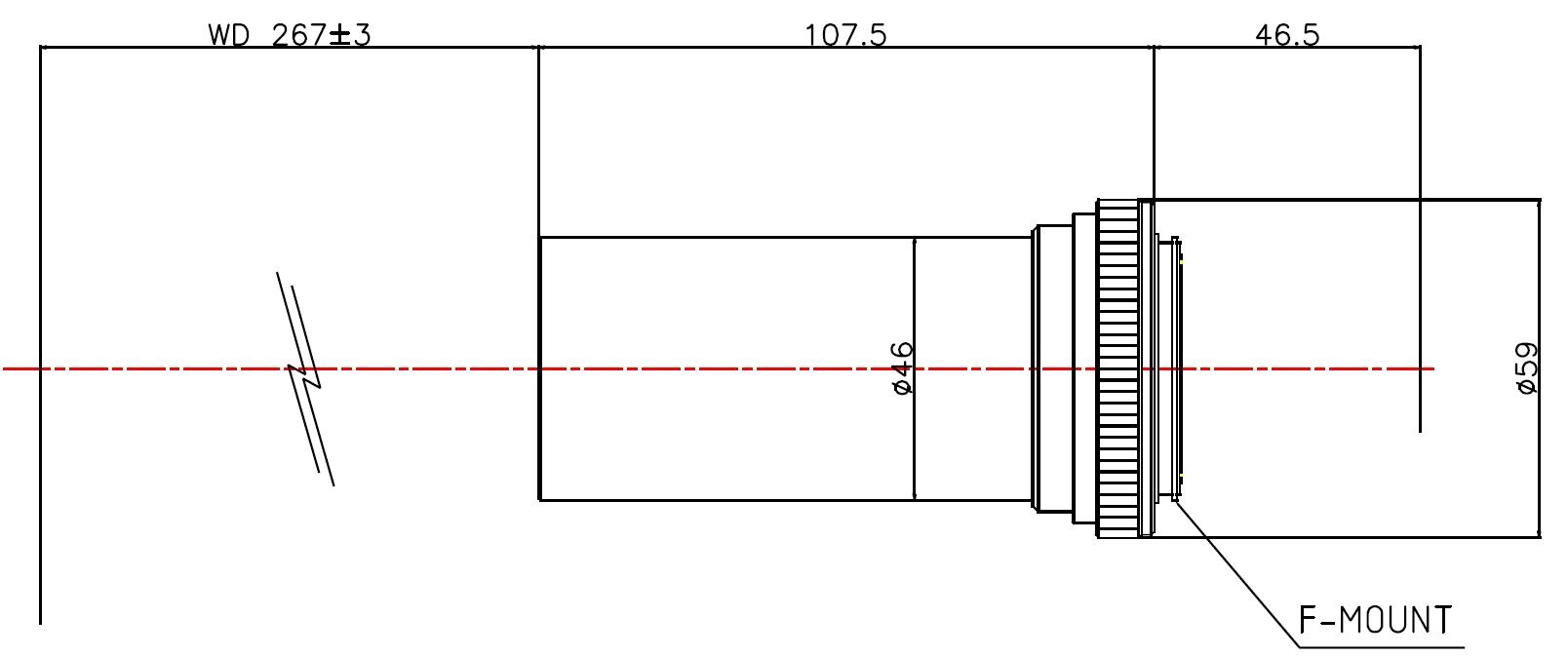

Technical Drawing:

Drawing
