Lensagon MCHR-019-240

High Res Macro Telecentric Lens for 2/3 inch sensor, Magnification: 0.19x, WD 240mm, F# 7.9, NA 0.012, DOF 18000um, Opt.Dist. 0.13

 Compare
SKU: 10943 Category:

Product Description

The Macro Telecentric Lens MCHR-019-240 is suitable for sensors with an image format of 2/3 inch.

Magnification 0.19
Mount C-Mount
Aperture 7.9
Working Distance (WD) 240 mm
Depth of Field (DOF) 18000 μm
Resolution (Object Side) 28 μm
Numerical Aperture (NA) 0.012
Image Format (max.) 2/3 inch
Field of View (FOV) 46.31mm x 34.73@2/3″ CCD
Lens Type Macro
Optical Distortion (max.) 0.13 %
Special Feature High Res
pdf

Additional Information

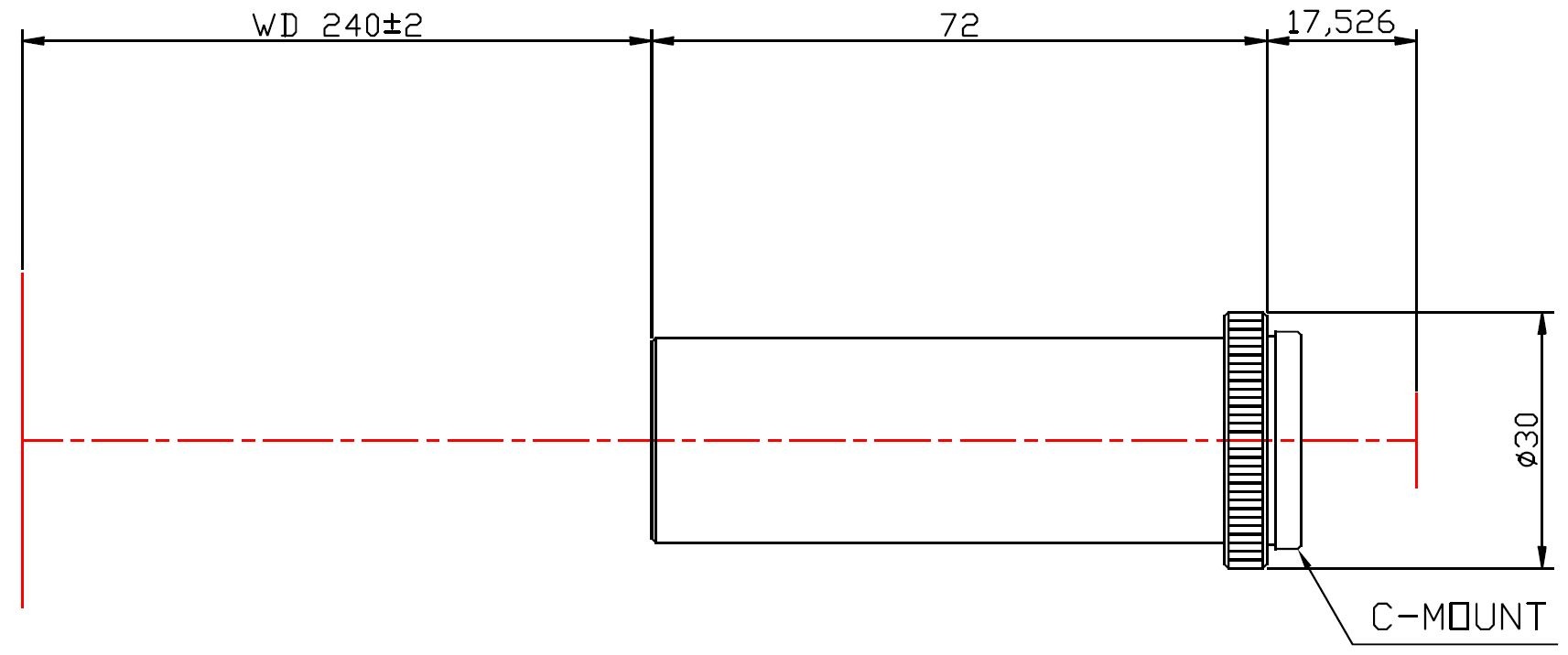

Technical Drawing:

Drawing
