Lensagon MCST-06-117

Lensagon MCST-06-117

Standard Macro Lens for 1/2 inch sensor, Magnification: 0.6x, WD 117mm, F# 0.3, NA 0.036, DOF 1800um, Opt.Dist. 0.02

 Compare
SKU: 10940 Category:

Product Description

The Macro Lens MCST-06-117 is suitable for sensors with an image format of 1/2 inch. It is characterized by a particularly high light intensity.

Magnification0.6
MountC-Mount
Aperture0.3
Working Distance (WD)117 mm
Depth of Field (DOF)1800 μm
Resolution (Object Side)9.3 μm
Numerical Aperture (NA)0.036
Image Format (max.)1/2 inch
Field of View (FOV)10.67mm x 8mm@1/2″ CCD
Lens TypeMacro
Optical Distortion (max.)0.02 %
Special FeatureStandard
pdf

Additional Information

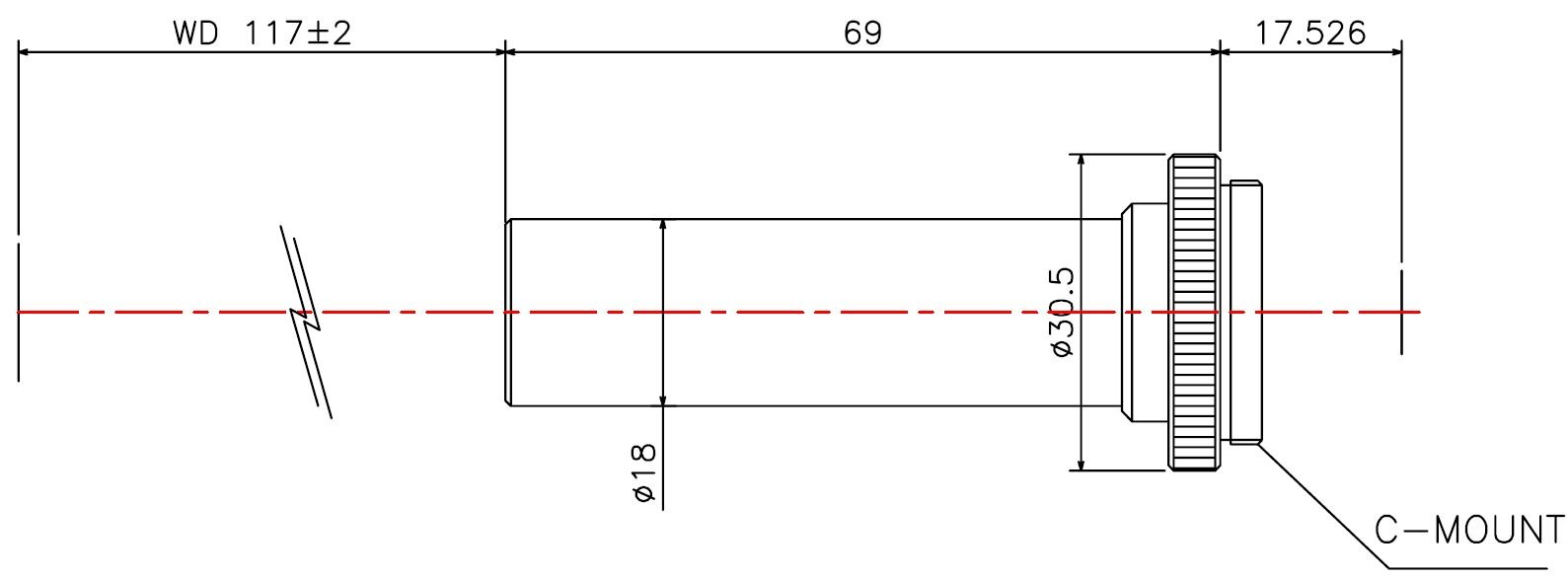

Technical Drawing:

Drawing
