Lensagon MC5M-0257-185

Lensagon MC5M-0257-185

Macro Lens for 2/3 inch sensor, Magnification: 0.257x, WD 185mm, F# 6.4, NA 0.02, DOF 3800um, Opt.Dist. 0.01

 Compare
SKU: 10948 Category:

Product Description

The Macro Lens MC5M-0257-185 is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 0.257
Mount C-Mount
Aperture 6.4
Working Distance (WD) 185 mm
Depth of Field (DOF) 3800 μm
Resolution (Object Side) 16.8 μm
Numerical Aperture (NA) 0.02
Image Format (max.) 2/3 inch
Megapixel 5
Field of View (FOV) 34.24mm x 25.68mm@5M CCD
Lens Type Macro
Optical Distortion (max.) 0.01 %
pdf

Additional Information

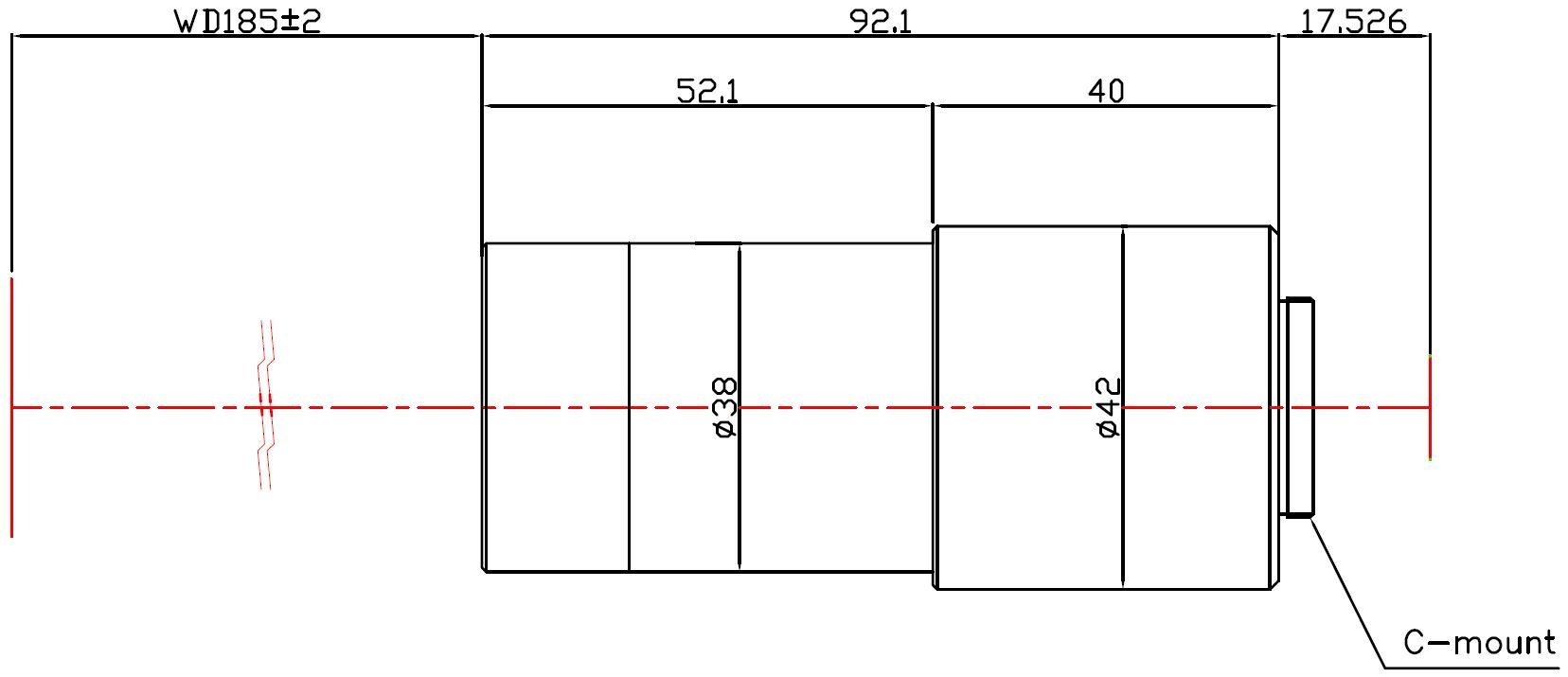

Technical Drawing:

Drawing
