Lensagon MF15M-042-300

Lensagon MF15M-042-300

Super High Res Macro Lens for 15M CCD sensor, Magnification: 0.42x, WD 300mm, F# 5.37, NA 0.039, DOF 1200um, Opt.Dist. 0.08

 Compare
SKU: 10780 Category:

Product Description

The Macro Lens MF15M-042-300 is suitable for sensors up to 15 megapixel and with an image format of 15M CCD.

Magnification 0.42 x
Mount F-Mount *
Working F-Number 5.37
Working Distance (WD) 300 mm
Depth of Field (DOF) 1.2 mm
Resolution (Object Side) 8.6 μm
Numerical Aperture (NA) 0.039
Image Format (max.) 15M CCD
Megapixel (max.) 15 MP
Field of View (FOV) 41.8mm x 41.8mm@15M CCD
Telecentric Type Macro
Optical Distortion (max.) 0.08 %
Special Feature Super High Res

* Other mounts are available on request.

pdf

Additional Information

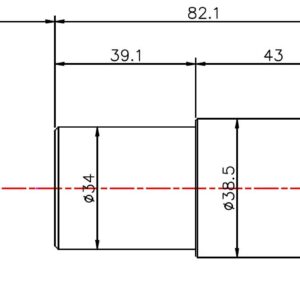

Drawing
