Lensagon MC4M-0185-225I

Macro Telecentric Lens for 1 inch sensor, Magnification: 0.185x, WD 225mm, F# 4.9, NA 0.019, DOF 6300um, Opt.Dist. 0.01

 Compare
SKU: 10950 Category:

Product Description

The Macro Telecentric Lens MC4M-0185-225I is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.185
Mount C-Mount
Aperture 4.9
Working Distance (WD) 225 mm
Depth of Field (DOF) 6300 μm
Resolution (Object Side) 17.6 μm
Numerical Aperture (NA) 0.019
Image Format (max.) 1 inch
Megapixel 4
Field of View (FOV) 60.86mm x 60.86mm@4M CCD
Lens Type Macro
Optical Distortion (max.) 0.01 %
pdf

Additional Information

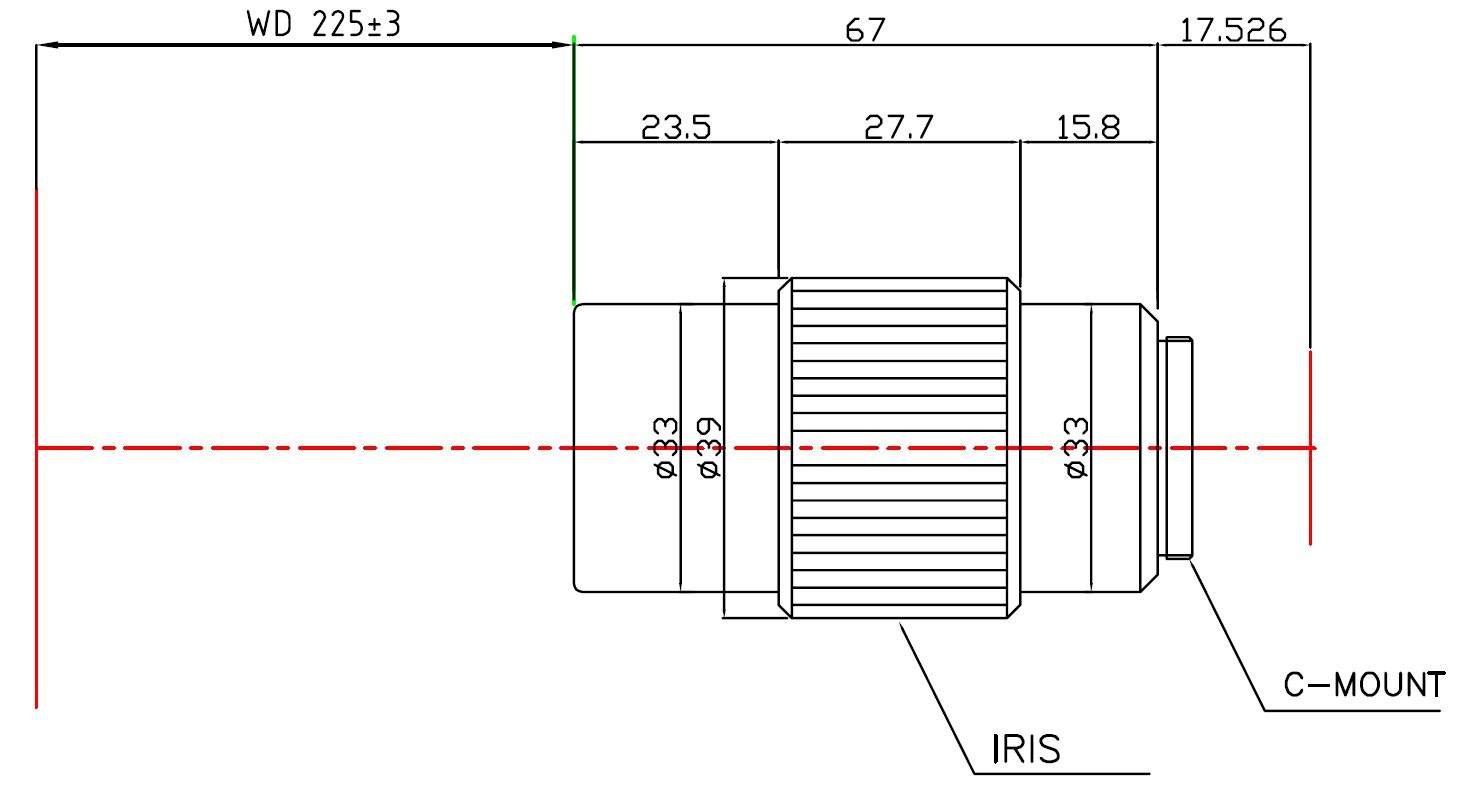

Technical Drawing:

Drawing
