Lensagon MC4M-055-160

Macro Telecentric Lens for 1 inch sensor, Magnification: 0.55x, WD 160mm, F# 8.1, NA 0.034, DOF 1200um, Opt.Dist. 0.06

 Compare
SKU: 10955 Category:

Product Description

The Macro Telecentric Lens MC4M-055-160 is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.55
Mount C-Mount
Aperture 8.1
Working Distance (WD) 160 mm
Depth of Field (DOF) 1200 μm
Resolution (Object Side) 9.9 μm
Numerical Aperture (NA) 0.034
Image Format (max.) 1 inch
Megapixel 4
Field of View (FOV) 20.47mm x 20.47mm@4M CCD
Lens Type Macro
Optical Distortion (max.) 0.06 %
pdf

Additional Information

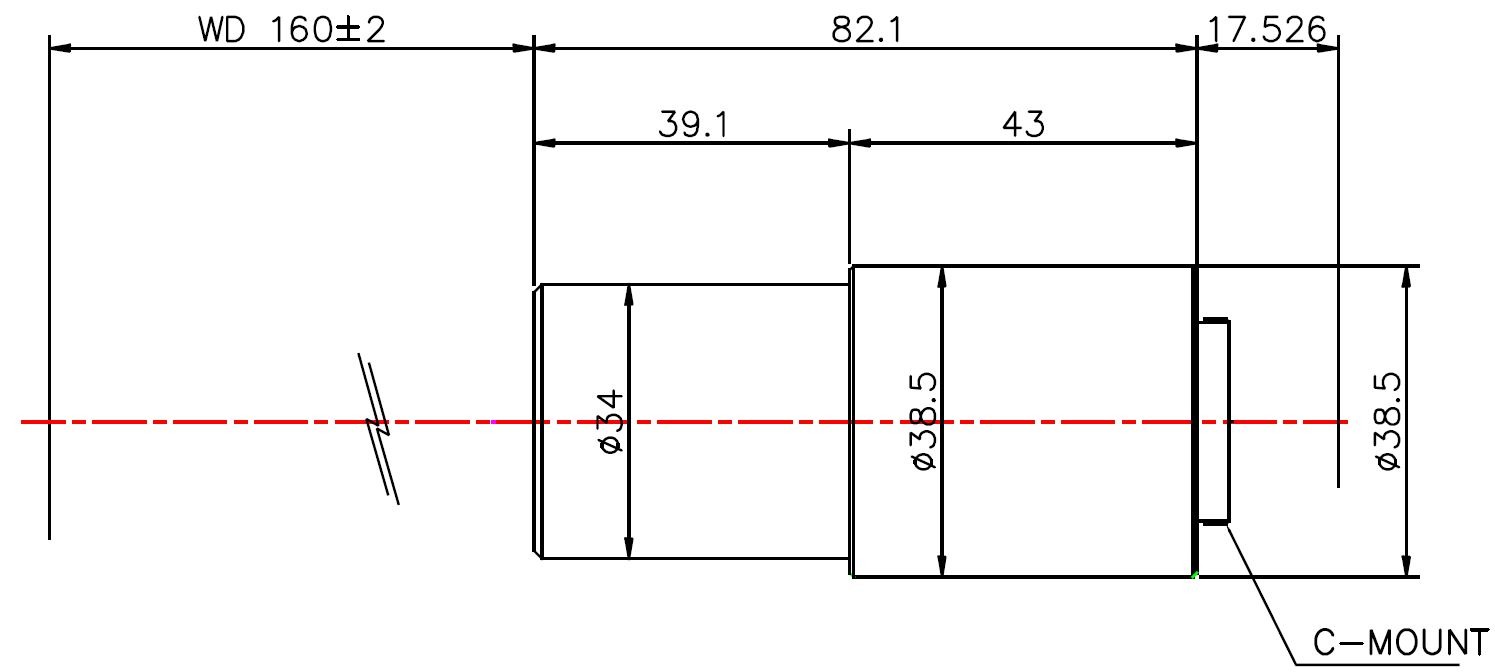

Technical Drawing:

Drawing
